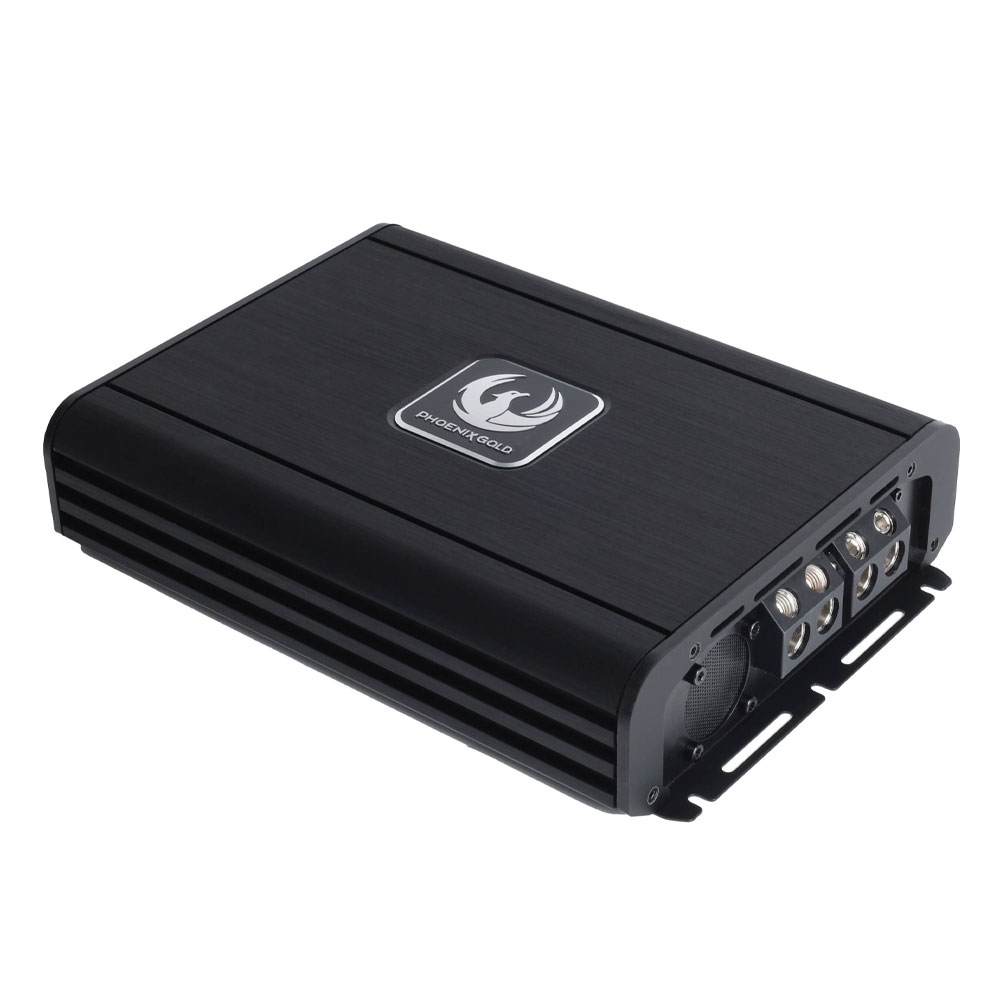

Phoenix Gold ZP5000.1 5000W High-power Full Range SPL Amplifier

Phoenix Gold ZP5000.1

The ZP5000.1 is a powerhouse amplifier engineered for high-power SPL enthusiasts. With an impressive 5000W output, this full-range amplifier delivers exceptional performance across subwoofers, midbass, and midrange speakers. Designed to thrive in demanding audio setups, the ZP5000.1 provides unmatched stability and relentless power, ensuring your system performs flawlessly, even under extreme conditions.

The ZP5000.1 is designed for high-power and SPL applications, this 5000W fullrange amplifier delivers exceptional performance for subwoofers, midbass and midrange speakers. Whether you’re pushing your system to its limits in high-power or SPL applications, the ZP5000.1 delivers unwavering stability and relentless performance, making it a reliable choice for demanding audio setups.

Key Features

• 2x 50mm² Power and Ground Terminals
• Included Bass Remote for On-the-Go Adjustments
• Adjustable High-Pass and Low-Pass Filters
• Class D High-Efficiency Design
• Full Bridge Technology
• Fullrange Amplifier with 5000W RMS in 1 Ohm
• Integrated Clip LED for Easy Gain Setting
• Comprehensive Protection Circuits
• High-Current PCB with Enhanced Stability
• Premium Tiffany RCA Connectors

Engineered for Reliability and Longevity

Superior Stability: Equipped with high-quality SMPS transformers and a robust capacitor bank, this amplifier maintains stable operations, even under high-peak power output.
Premium Components: Tiffany RCA connectors ensure a stronger, more reliable connection, while sealed potentiometers protect against moisture, oxidation, and corrosion for long-lasting performance.
Enhanced Durability: High-current PCBs with additional bracing guarantee steady operation, while the integrated Clip LED simplifies gain adjustments, ensuring distortion-free sound.

Optimised Audio Performance

Advanced Filtering: Adjustable High-Pass and Low-Pass filters provide the flexibility to fine-tune your subwoofers, midbass, or midrange speakers to their optimal frequency ranges for the best performance.

Bass Remote Control Included

Take complete control of your audio experience with the included bass remote control. With a 5-meter cable, this remote allows you to adjust the bass level effortlessly from the driver’s seat, giving you total control of the sound.

Specifications

• Class: Class D
• Channels: 1Frequency
• Response: 12Hz – 14kHz
• Max Power
• Rating: 10000W
• RMS Power Rating (1Ω): 1 x 5000W
• RMS Power Rating (2Ω): 1 x 3200W
• RMS Power Rating (4Ω): 1 x 1700W
• Signal to Noise Ratio (SNR) (Full Power): -85dB
• Total Harmonic Distortion (THD): <1%
• Low-Pass Filter (LPF): 50Hz – 15kHz (12dB/Oct)
• High-Pass Filter (HPF): 15Hz – 1kHz (12dB/Oct)
• Bass Boost: 0 – +18dB
• Bass Boost Variable Frequency: 35Hz – 100Hz
• Input Sensitivity: 0.35V – 3V
• Remote: Yes (Included)
• High-level Input: Yes
• Auto Turn-on: No
• Operating Voltage: 7.8V – 18V
• Idle Current: 1.7A
• Current Draw (Max): 427A
• Total Efficiency (4Ω): 89%
• Power Terminal: 2x 50mm²
• Speaker Terminal: 20mm²
• Dimensions (LxWxH): 293.4 x 206.4 x 63.3mm
• Weight: 3.38 kg

Included In The Package

• 1x ZP5000.1 Amplifier
• 1x Remote Control
• 1x 5m Remote Control Wire
• 4x Amplifier Mounting Screws
• 2x Remote Control Screws
• 3x Hex Keys
• 1x Manual
• 1x Warranty Card
