Kicker KA51LX12005 LX Series 5 Channel Class D Amplifier With DSP Features

Kicker KA51LX12005

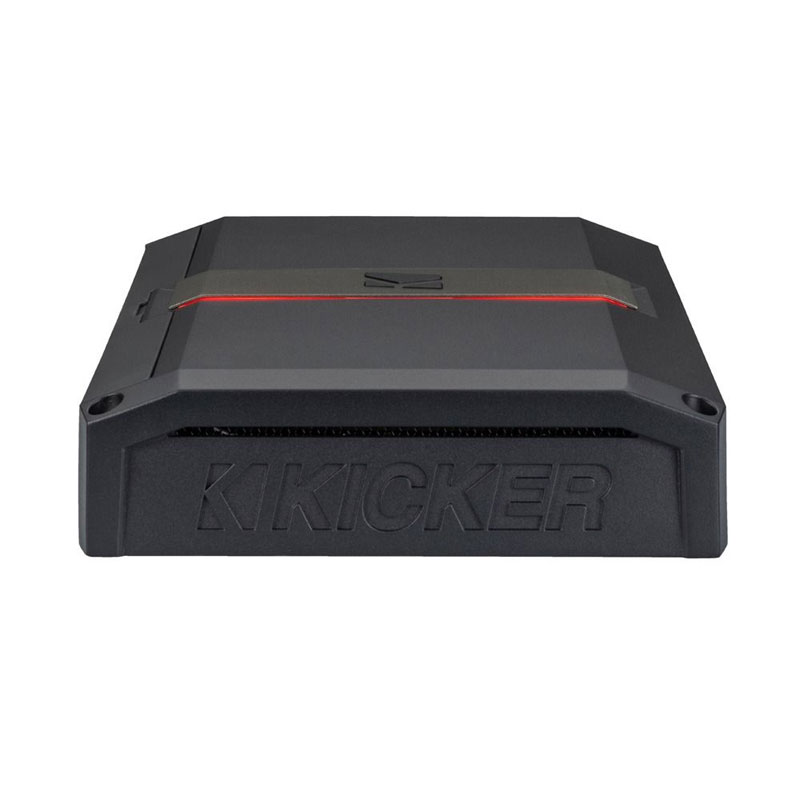

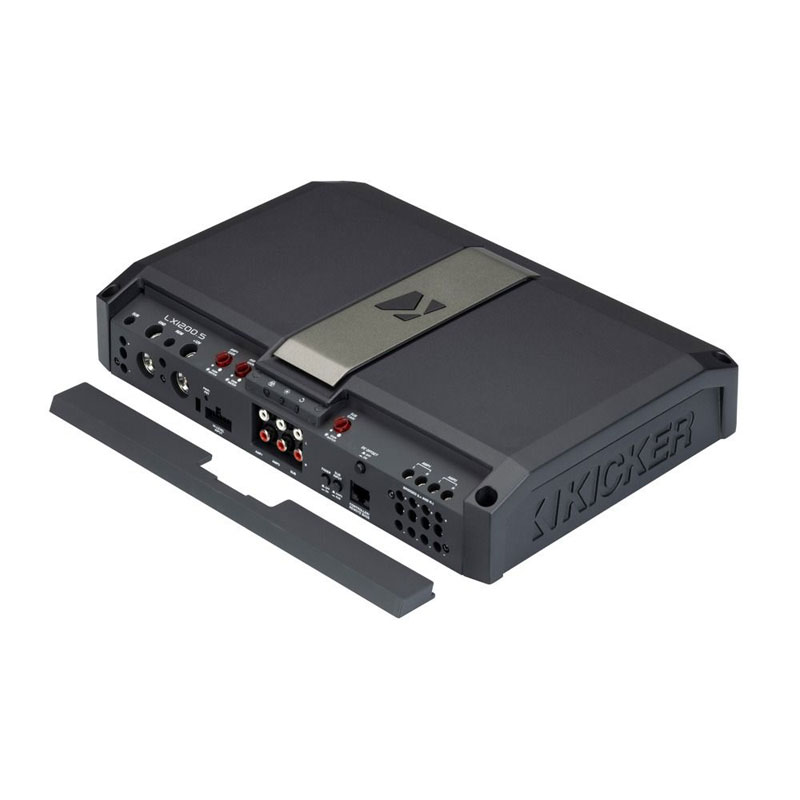

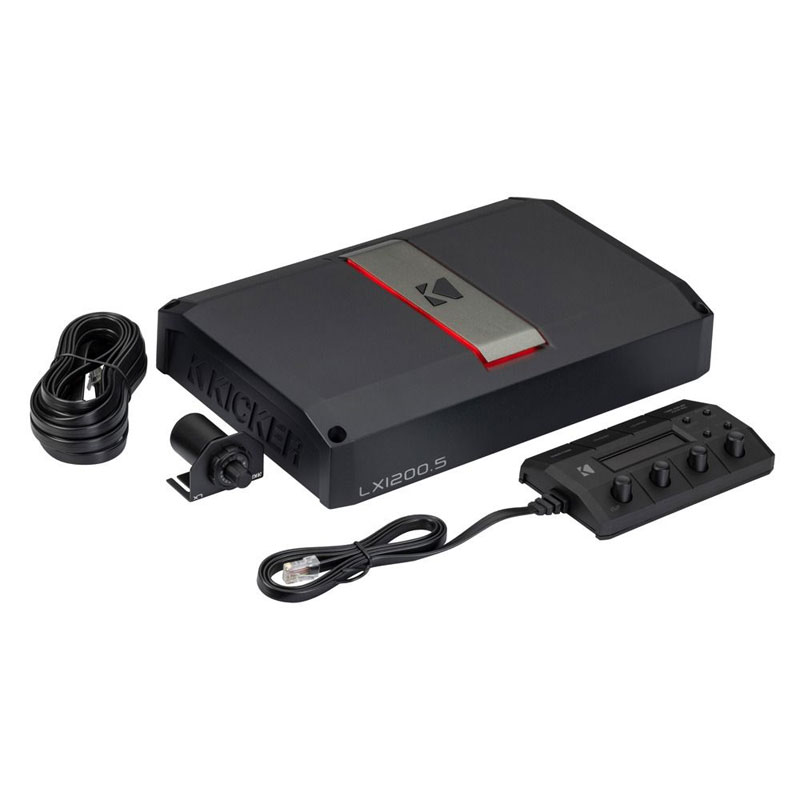

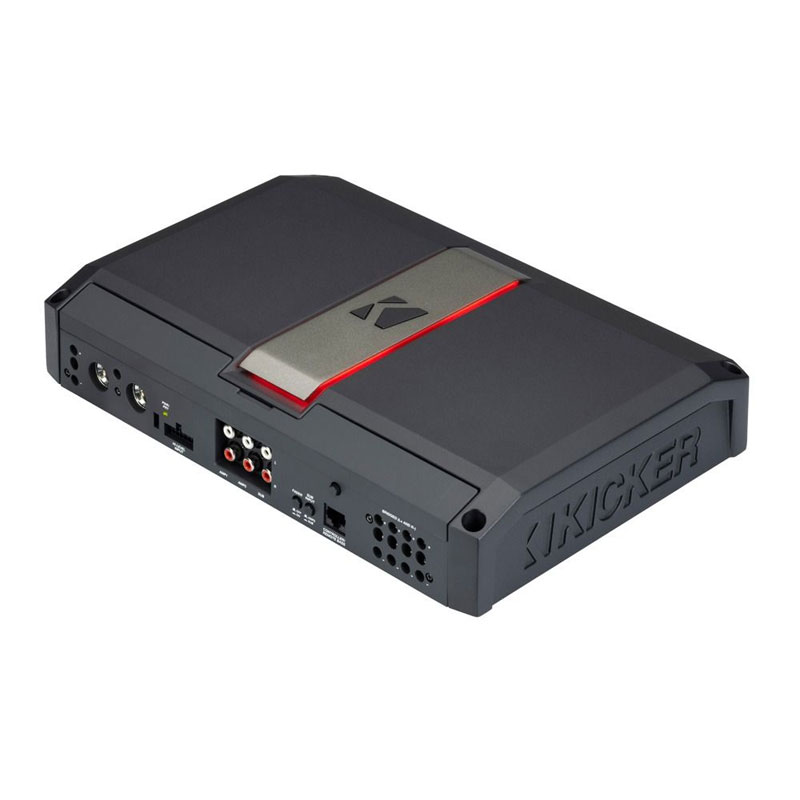

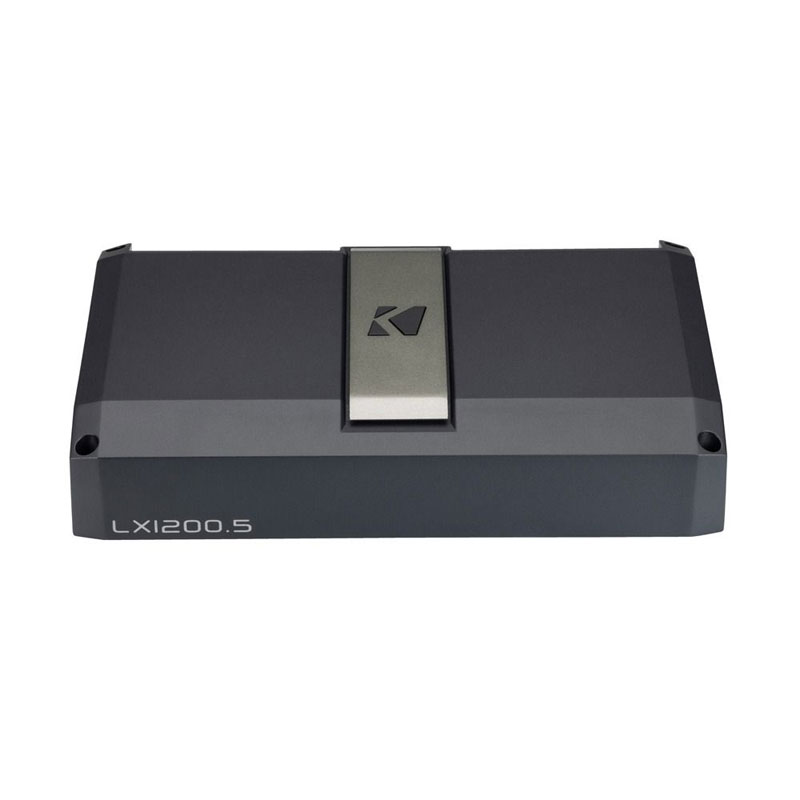

Experience unmatched clarity and control with the LX 1200W 5 Channel Class D System Amplifier. Engineered for high-powered performance, it delivers crystal-clear audio and personalized LED accents. Complete with a dash remote for easy adjustments.

The KICKER LX-Series is the ultimate blend of sound quality (SQL) design and high-powered performance. Engineered with feedback from audio enthusiasts, this premium amplifier line delivers the most-requested features while maintaining exceptional reliability and control. The LX 5-Channel is the ultimate all-in-one system amplifier.

Powerful Features for Ultimate Performance

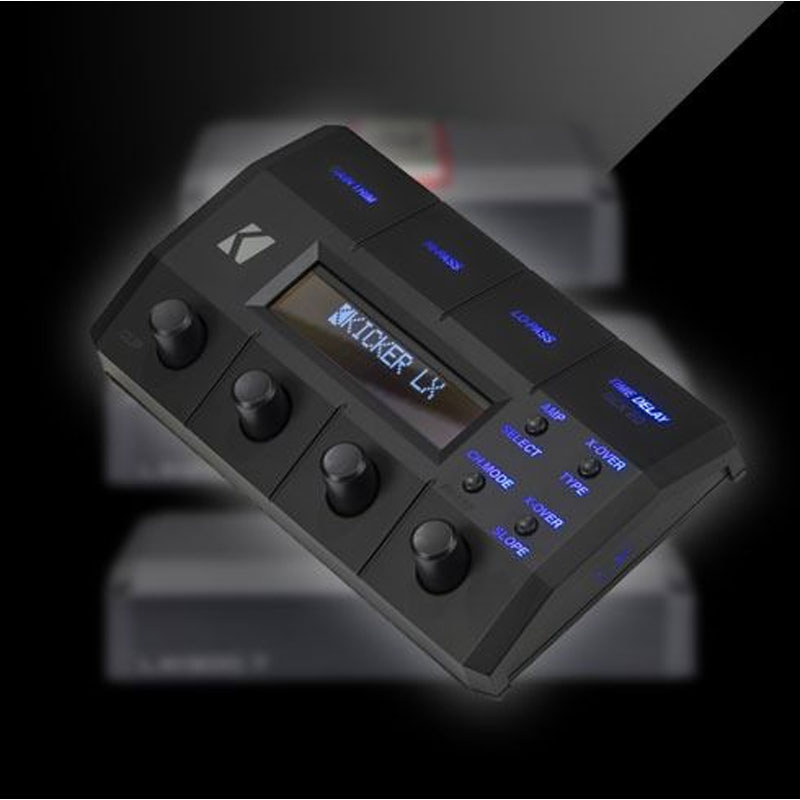

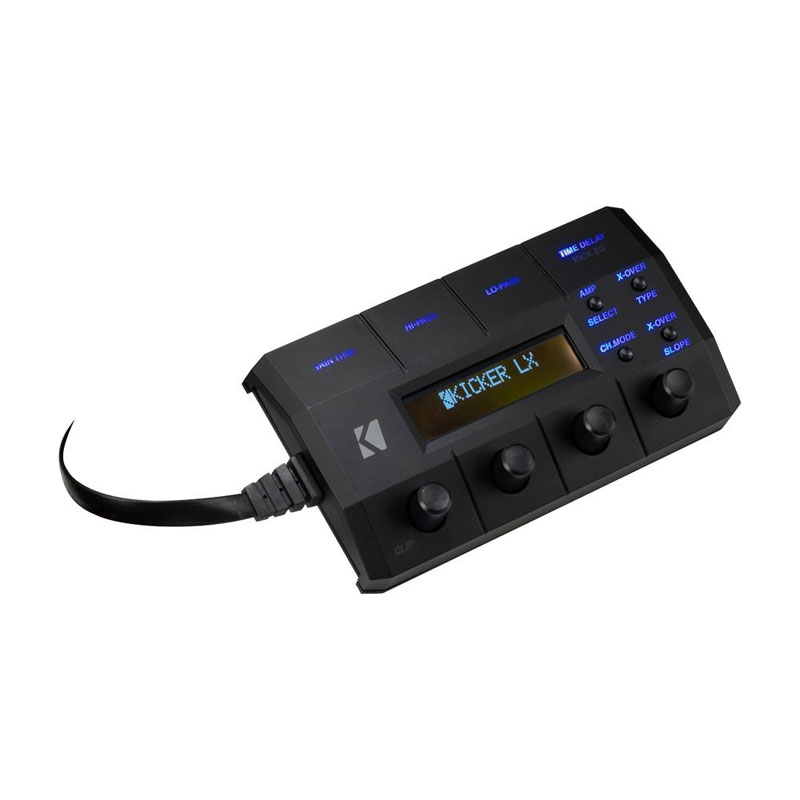

• LXCC Control Center Included – Adjust gain trim, crossover type, slope & frequency
• LXRC Dash Remote Included – Adjust bass levels, monitor voltage, and control LED lighting from your fingertips.
• Efficient Class-D Design – Runs cooler, draws less power, and extends playtime without sacrificing performance.
• Easy Gain Matching – Built-in LED indicators ensure perfect gain settings for distortion-free sound.
• Customisable Appearance – Reversible center panel and 11 RGB LED accent colors for a personalized look.
• FIT+™ Technology – Accepts low- and high-level signals up to 40V, eliminating noise for crystal-clear audio.
• Advanced Protection – Multiple safety features prevent overheating, circuit issues, and voltage fluctuations.

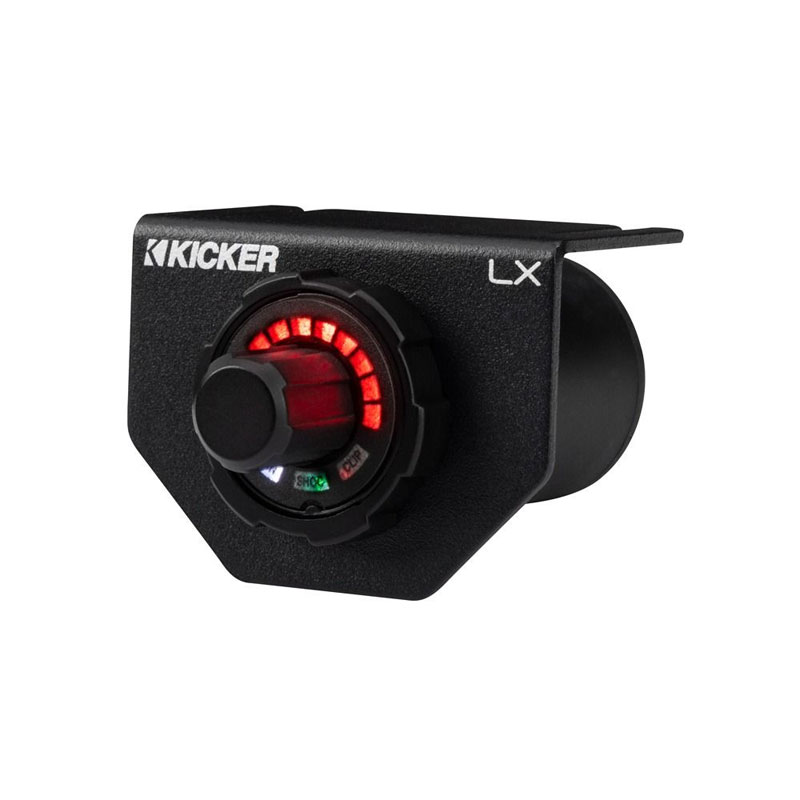

LXRC Dash Remote – Total Control at Your Fingertips

• SHOCwave2.0™ – KICKER’s latest bass restoration algorithm recovers deep low-end frequencies for fuller sound.
• Battery Voltage Display – Fuel-gauge-style readout keeps you informed.
• RGB LED Control – Adjust brightness and customize your lighting.
• Clipping Indicator – Helps prevent distortion and protects your system.
• Long Cable for Easy Installation – 19.75 ft (6m) RJ45 cable included.

Power Ratings

• 125W x 4 @ 4Ω
• 175W x 4 @ 2Ω
• 350W x 2 @ 4Ω (Bridged)

Power Ratings (subwoofer channel)

• 700W x 1 @ 1ohm
• 550W x 1 @ 2 ohm
• 300W x 1 @ 4 ohm

Dimensions

• Height: 6 cm
• Width: 21.4 cm
• Length: 32 cm

The KICKER LX-Series 5 Channel is built for those who demand power, precision, and premium performance. Whether you’re fine-tuning your speakers, or pushing your system to the limit, the LX-Series delivers unmatched clarity and control.

Specifications

• Output Channels 1
• Voltage (V) 12
• Class D
• Fuse Rating (A) 100A
• Cable Gauge (AWG) 0
• Amp Turn-On
  • DC Offset
  • 12V
• Frequency Response (Hz) 20-20k
• Signal-to-Noise Ratio (dB) 95
• Filter
  • High-Pass
  • Low-Pass
• Controller Yes
• Input Channels 2
• Input Type
  • High Level
  • Low Level
• Input Sensitivity Low Level 125mV-5V
• Input Sensitivity High Level 1V-40V
• Height (cm) 6
• Width (cm) 32
• Depth (cm) 21.5
• Colour Black
