Kicker CompR 15″ Dual Voice Coil Subwoofer With Class D Monoblock Amplifier

Package Includes

• CompR 15″ Dual Voice Coil Subwoofer – 4 Ohm
• CX 800W Monoblock Class D Subwoofer Amplifier

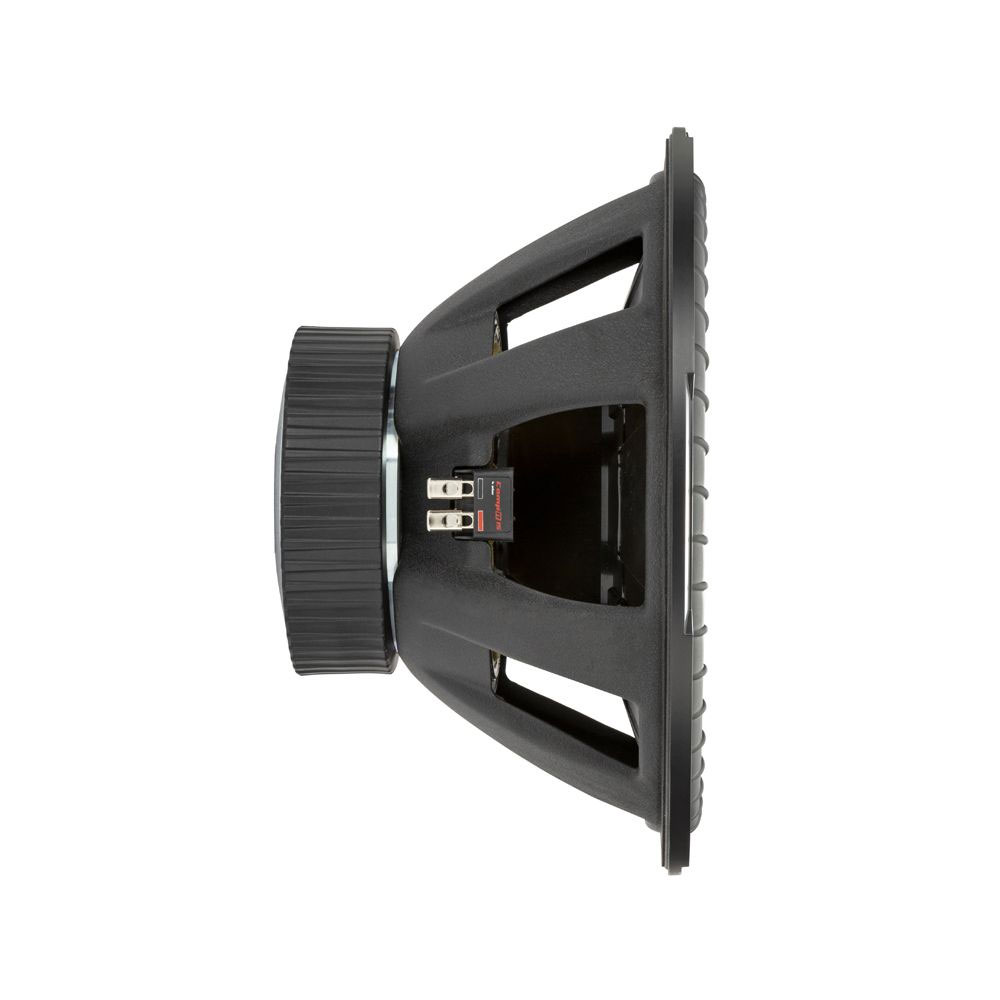

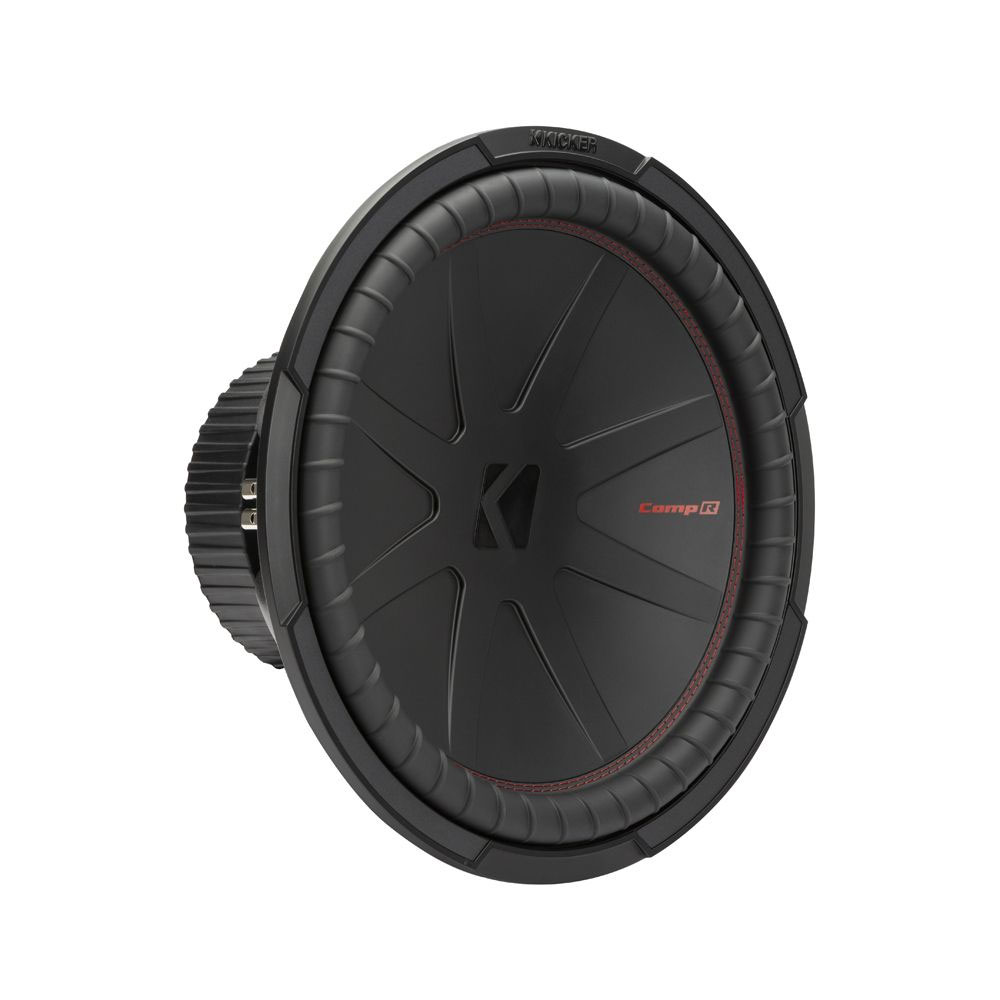

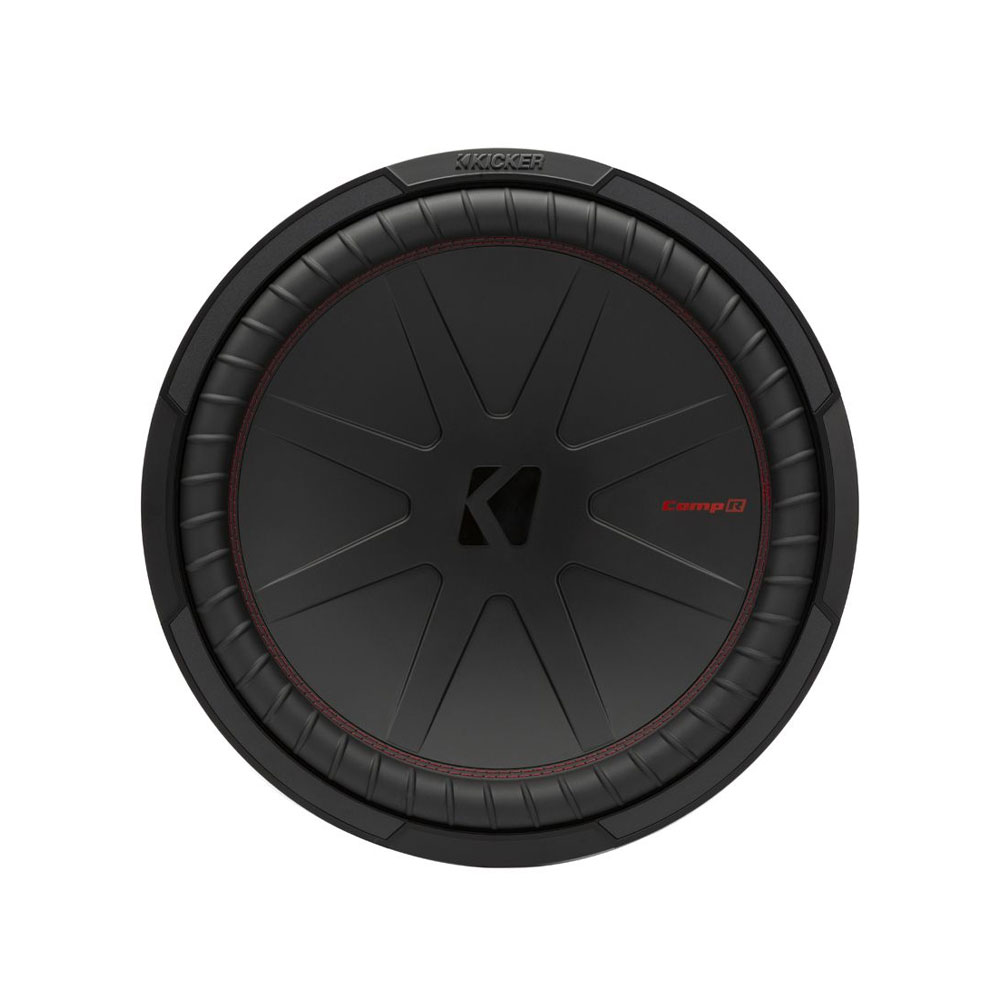

CompR 15″ Dual Voice Coil Subwoofer – 4 Ohm

Now even more efficient and sporting a slick, blacked-out look, the newest CompR® sub is the very model of power and reliability.

The CompR 15-Inch Subwoofer is a 2Ω dual voice coil design, making it easy to get the most out of your amp.

An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Our signature red double stitching makes an outstanding bond between the improved Santoprene® surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.

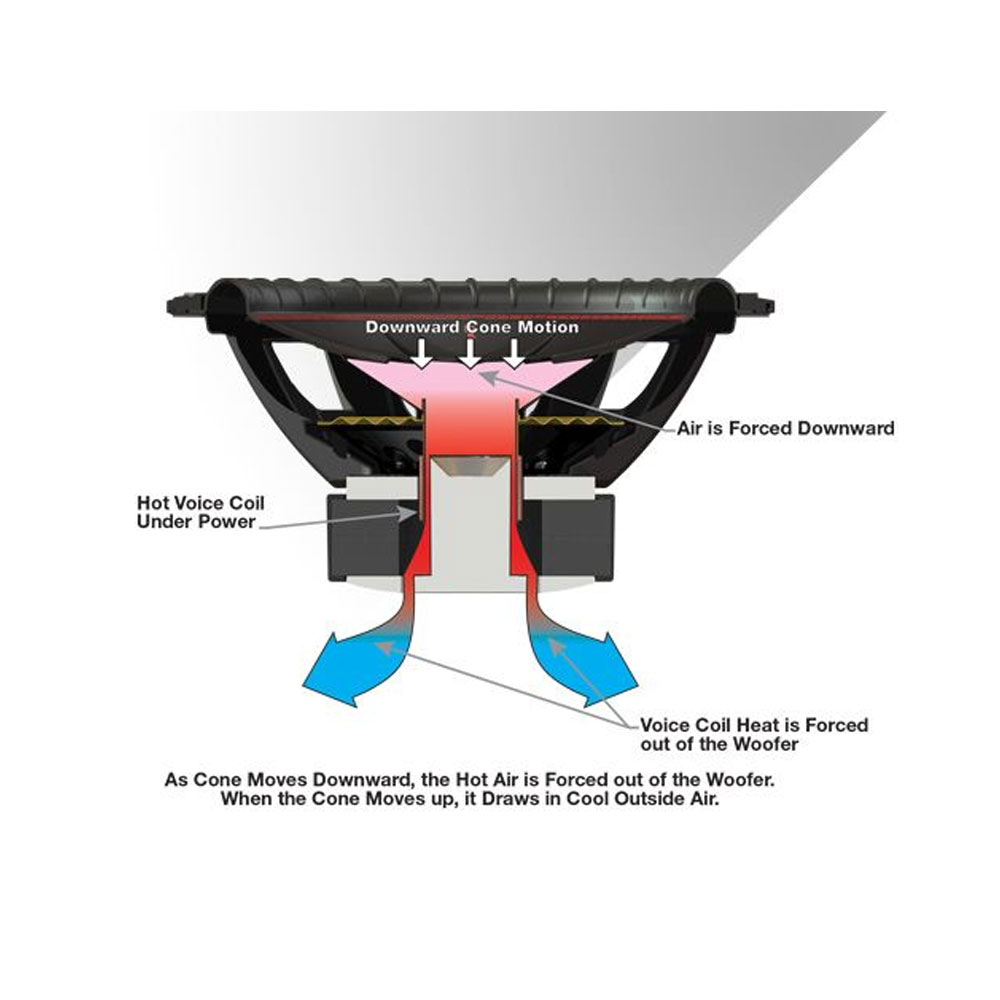

To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.

Spec:

• 15 inch
• Dual voice coil – 4 ohm
• RMS power: 800W

Features:

• Forced air cooling (keeps the voice coil cool)
• Double stacked magnet
• Signature, double red stitching
• Santoprene surround
• Spring loaded terminals

Dimensions:

• Mounting depth: 20cm
• Mounting diameter: 35cm
• Sealed enclosure spec: 51L – 85L
• Ported enclosure spec: 85L – 142L

Specification

• Style Normal
• Impedance (Ohms) Dual 4
• Voice Coils Dual
• RMS Power (W) 800
• Peak Power (W) 1600
• Sensitivity (dB @ 1W/1m) 89.4
• Frequency Response (Hz) 28.9
• Mounting Depth (cm) 20.0
• Mounting Hole Diameter (cm) 35.0
• Grills Not Included
• Recommended Amplifier
  • KA46CXA8001
  • KA44KXA8001
  • KA42IQ5001
• Recommended Box Volume Sealed (Litres) 51.0-85.0
• Recommended Box Volume Ported (Litres) 85.0-142.0

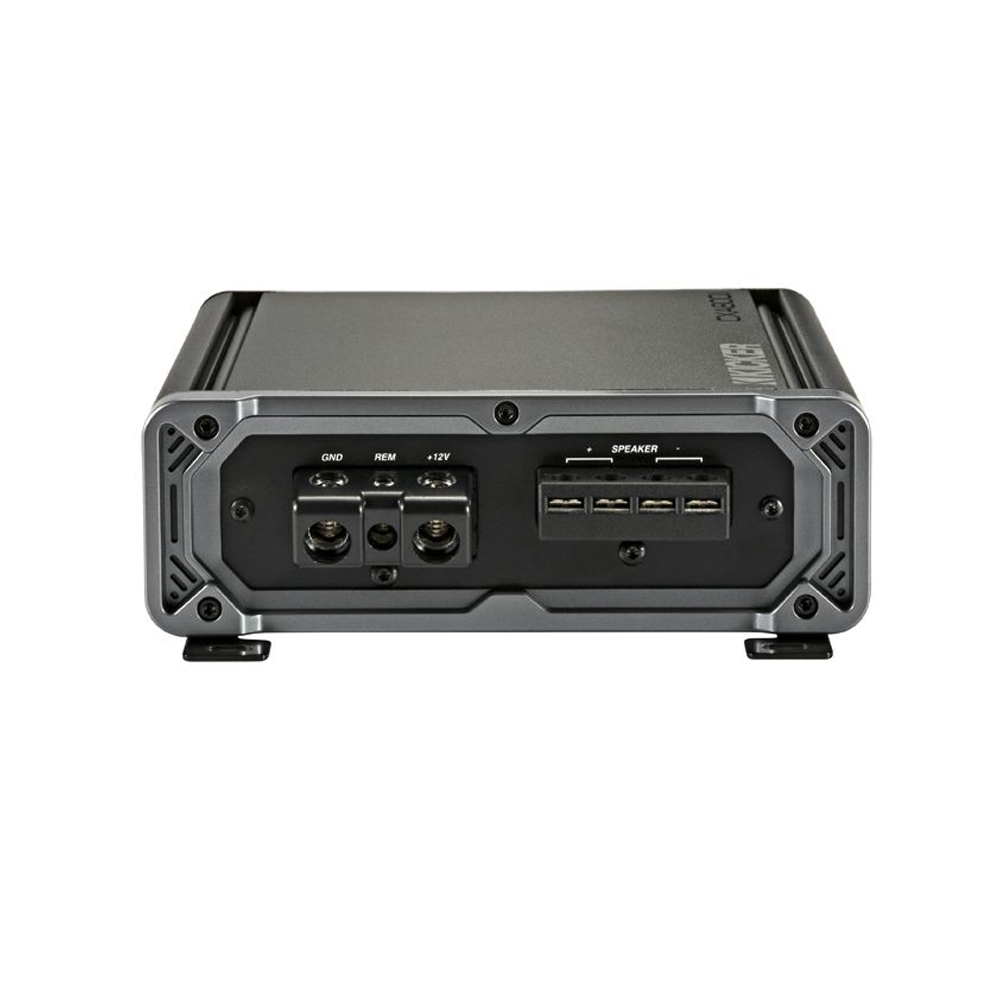

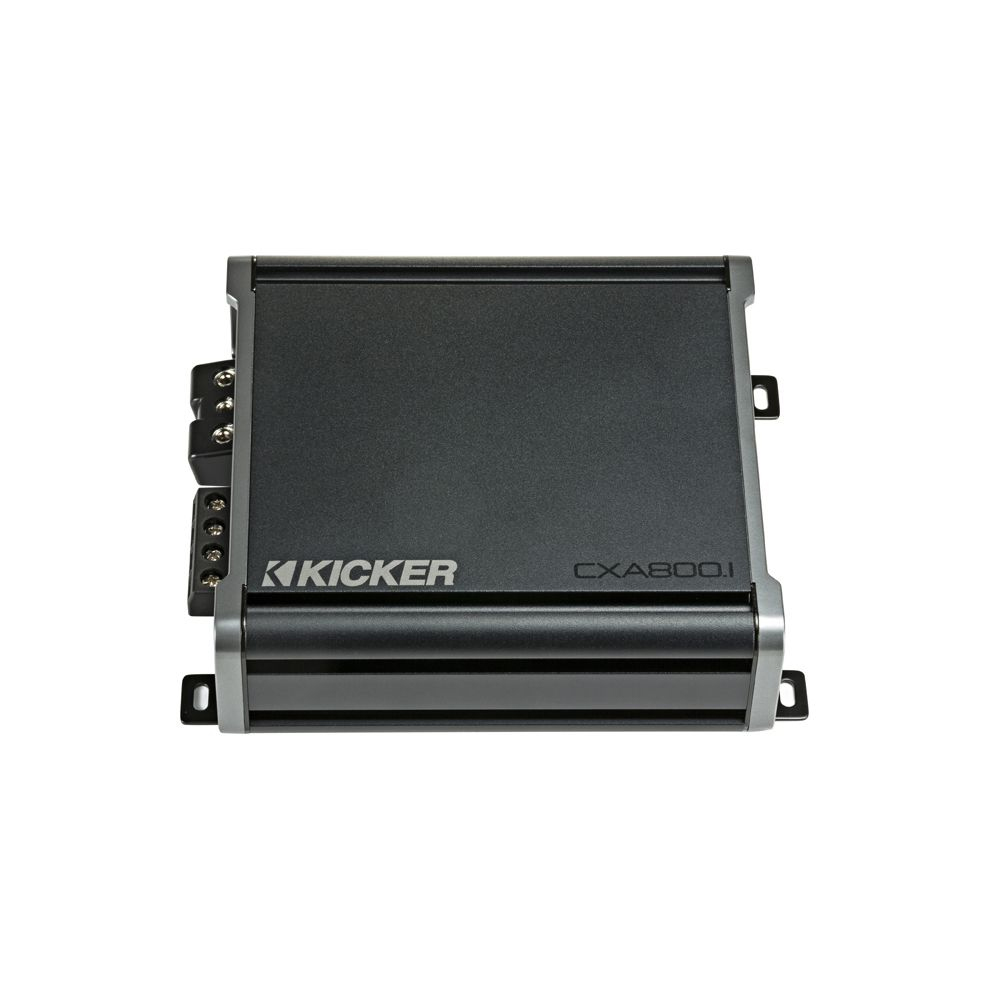

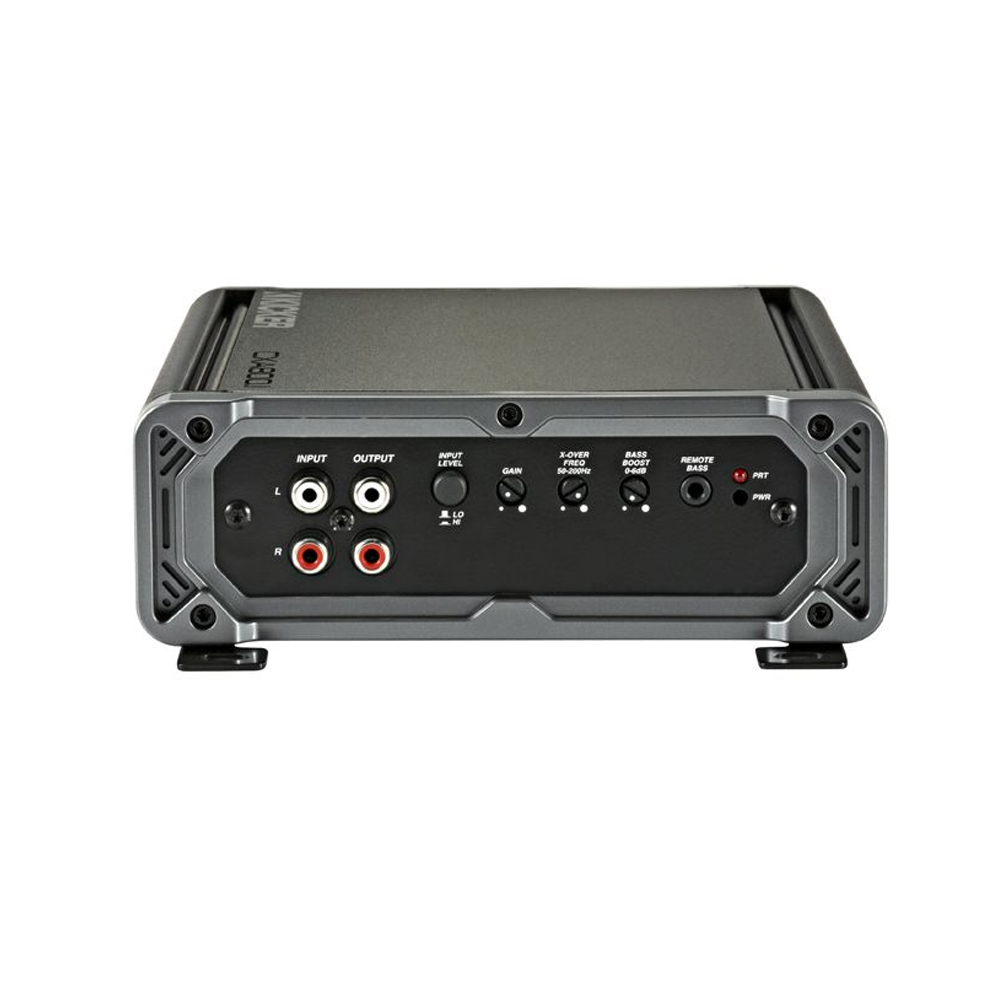

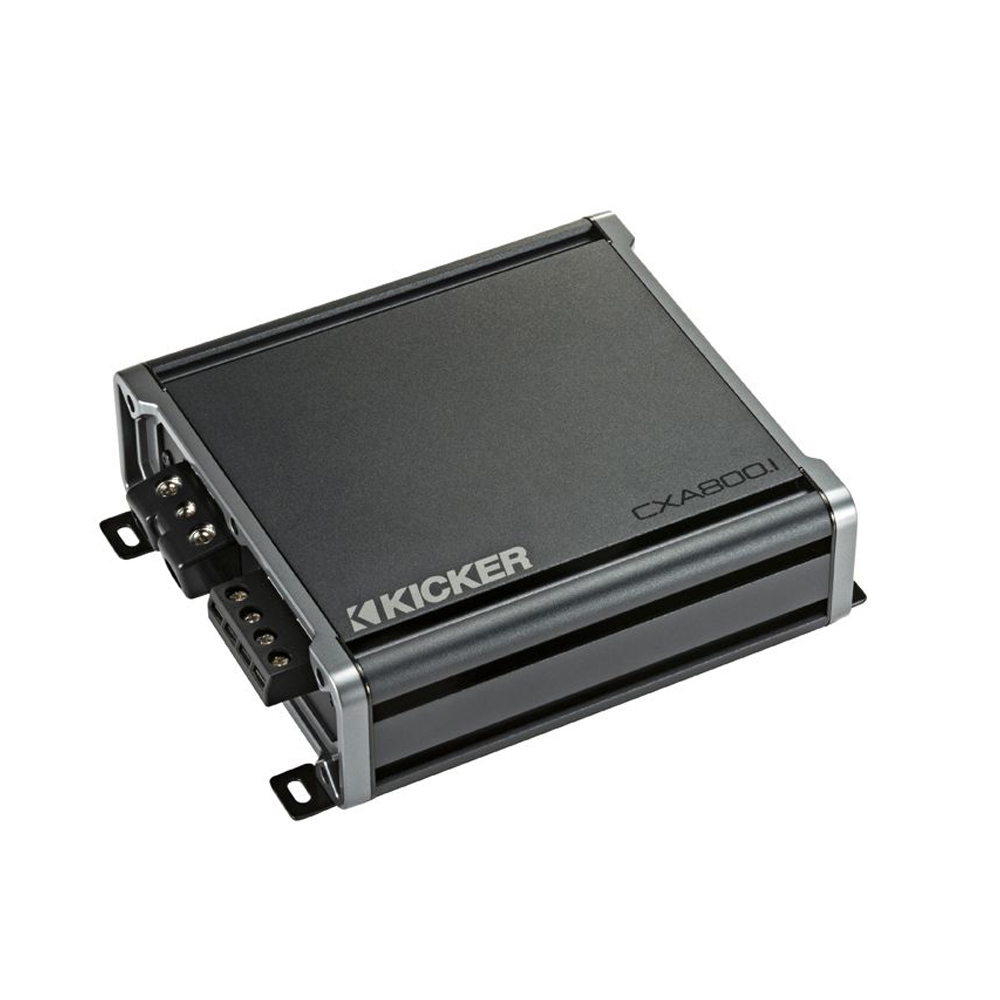

CX 800W Monoblock Class D Subwoofer Amplifier

Experience unmatched power and performance with the CX 800W Monoblock Class D Subwoofer Amplifier. Optimized for sound quality, its equipped with a variable bass boost, 12dB crossover, and accepts up to 40-volt input. Compact yet powerful, its the ultimate addition to your sound system.

The CXA800.1 Mono Amplifier is built for affordable power and performance, thanks to optimized circuit layout and high-grade internal components.

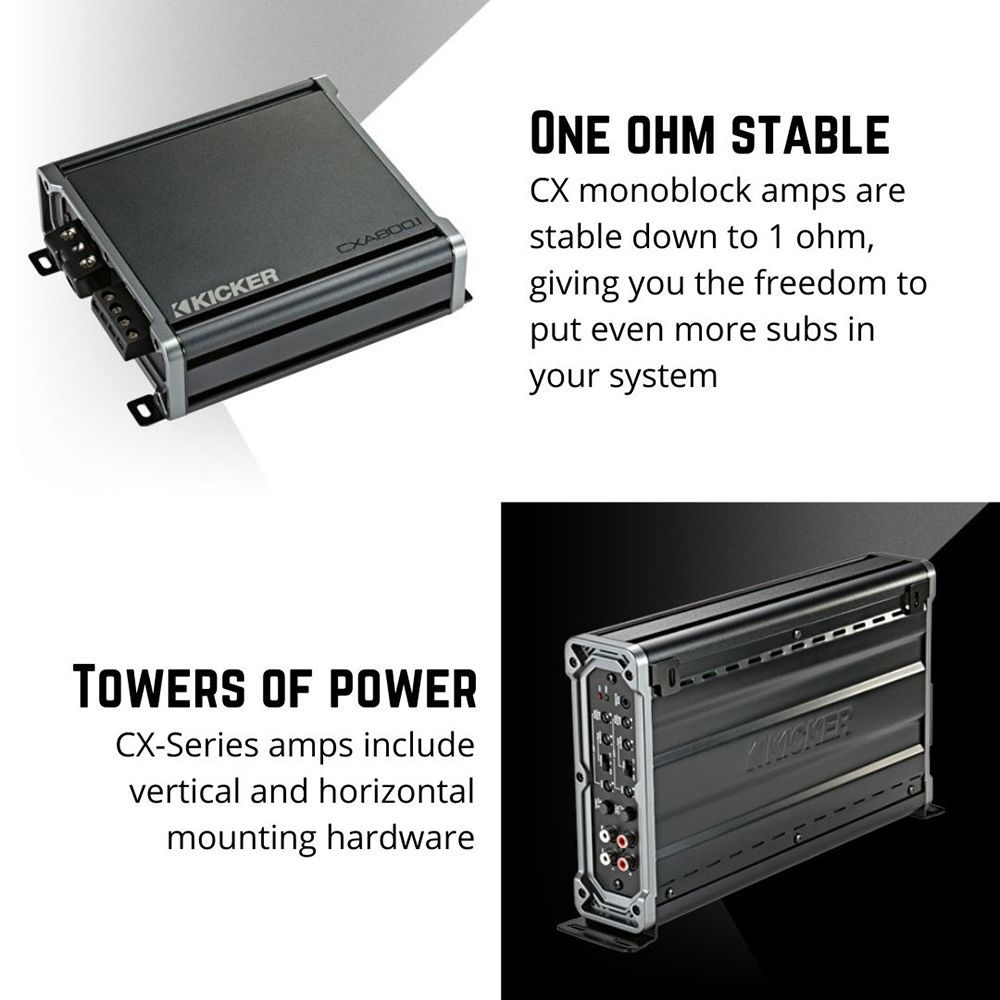

This CX-Series Mono Amp is one-ohm stable, giving you even more power and wiring options for your system! Using a Class-D power plant, the CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware.

Power:

• 800W x 1 @ 1Ω – 14.4V
• 600W x 1 @ 2Ω – 14.4V
• 300W x 1 @ 4Ω – 14.4V

Features:

• Efficient Class-D amplifier
• Three-second turn-on/off delay to eliminate unwanted interference
• Variable 12dB crossovers provides control to dial in perfect sound
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• 24dB subsonic filter for protection from potentially damaging frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Accepts up to 40-volt input signal
• Small footprint for easier installation
• Compatible with CXARC Remote Bass Control

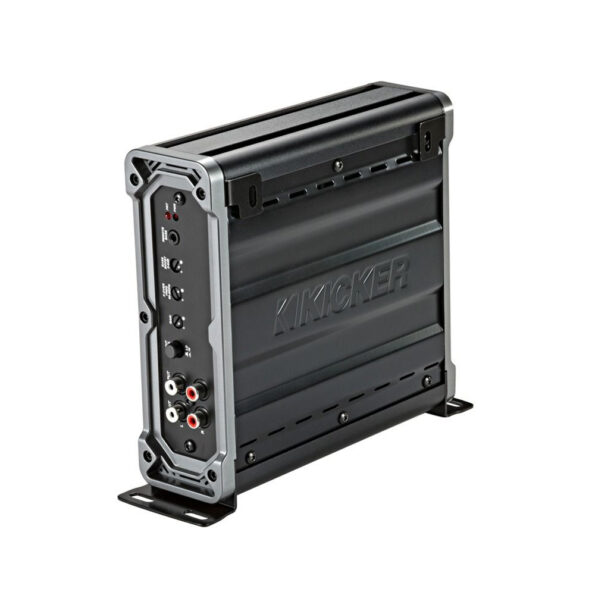

• Vertical mounting hardware included for another unique look

Specification

• RMS Power @ 14.4V
  • 300W x 1 @ 4Ω
  • 600W x 1 @ 2Ω
  • 800W x 1 @ 1Ω
• Output Channels 1
• Voltage (V) 12
• Class D
• Features
  • One Ohm Stable
  • KickEQ Bass Boost
  • FIT+ Technology
• Fuse Rating (A) 80A
• Cable Gauge (AWG) 4
• Amp Turn-On
  • DC Offset
  • 12V
• Frequency Response (Hz) 25-200
• Signal-to-Noise Ratio (dB) 95
• Filter Low-Pass
• Controller CXARC (Sold Separately)
• Input Channels 2
• Input Type
  • High Level
  • Low Level
• Input Sensitivity Low Level 125mV-5V
• Input Sensitivity High Level 250mV-10V
• Height (cm) 5.9
• Width (cm) 20.6
• Depth (cm) 17
• Colour Black
