JL Audio HD1200/1 Monoblock Class D Wide-Range Amplifier

JL Audio HD1200/1 Monoblock Class D Wide-Range Amplifier, 1200 W x 1 @ 1.5-4 Ω

Our most powerful HD amplifier employs our advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

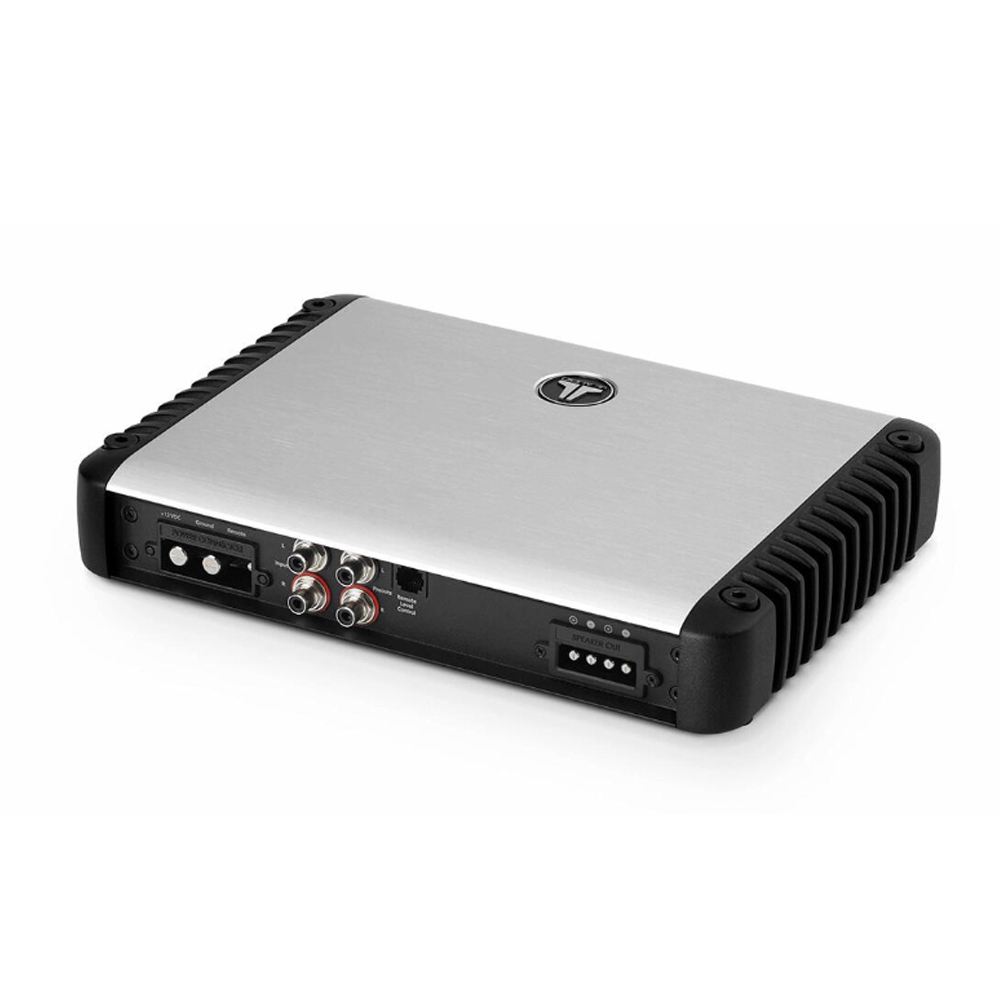

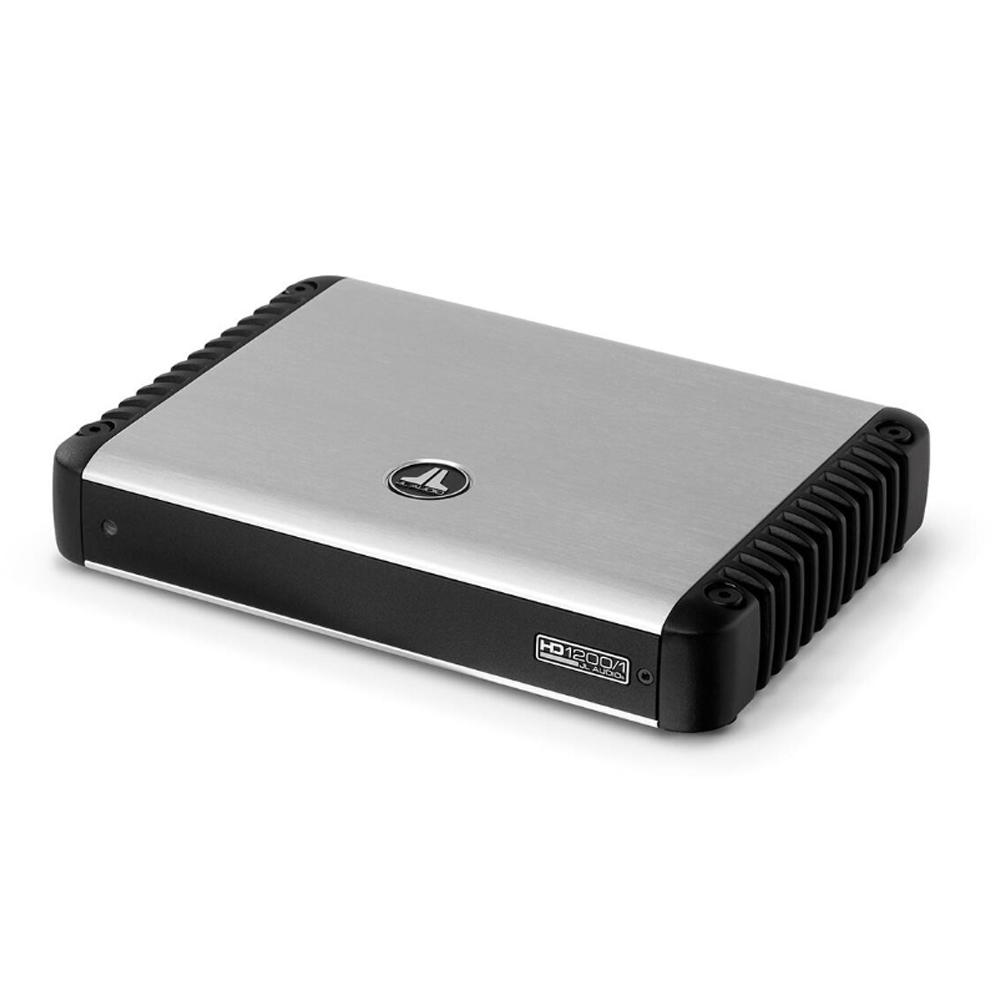

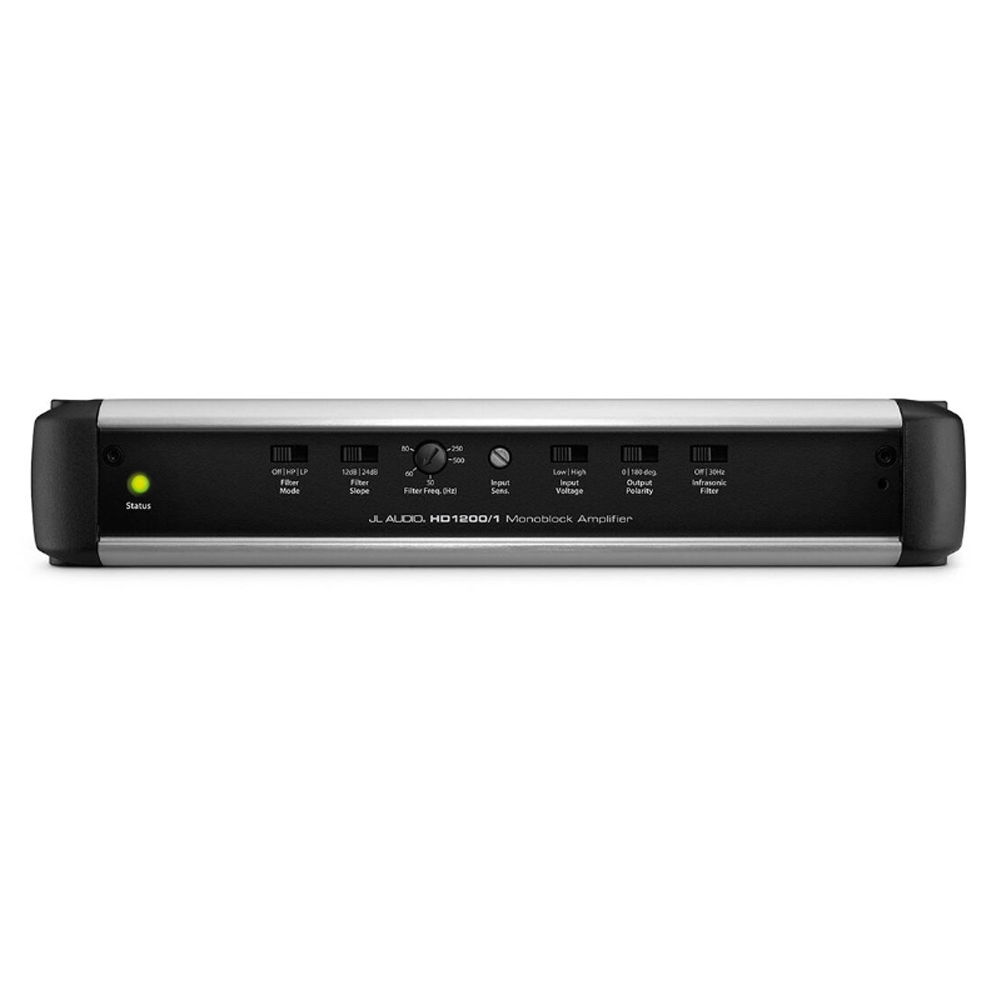

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Specifications

• Frequency Response: 6 Hz – 8 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power: > 110 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels): > 79 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 500 / 50 Hz
• Damping Factor @ 2 Ω: > 250 / 50 Hz
• THD+N @ Rated Power (Main Channels): < 0.03% @ 4 Ω
• Input Voltage Range @ RCA Inputs: Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
• Min. Copper Power / Ground Wire Gauge: 2 AWG wire
• Fuse Rating: 100 A (AFS, AGU or MaxiFuse™)
• Product dimensions: 273 x 49 x 199 mm
• Net weight: 2.99 kg
