JL Audio CF-690w – 6″ x 9″ Custom Fit Component Woofer For Ram,Toyota,GM

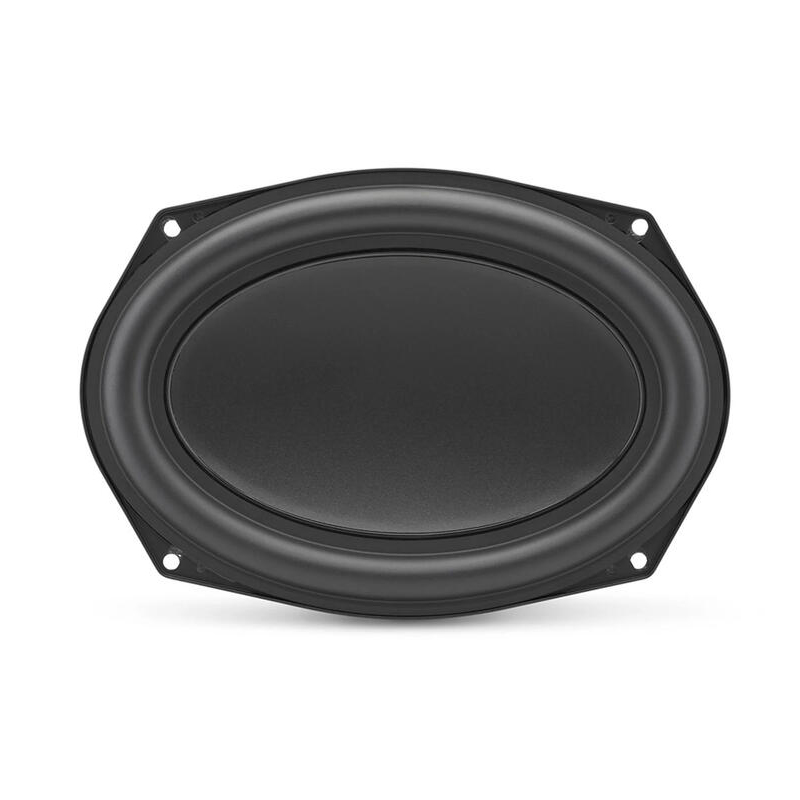

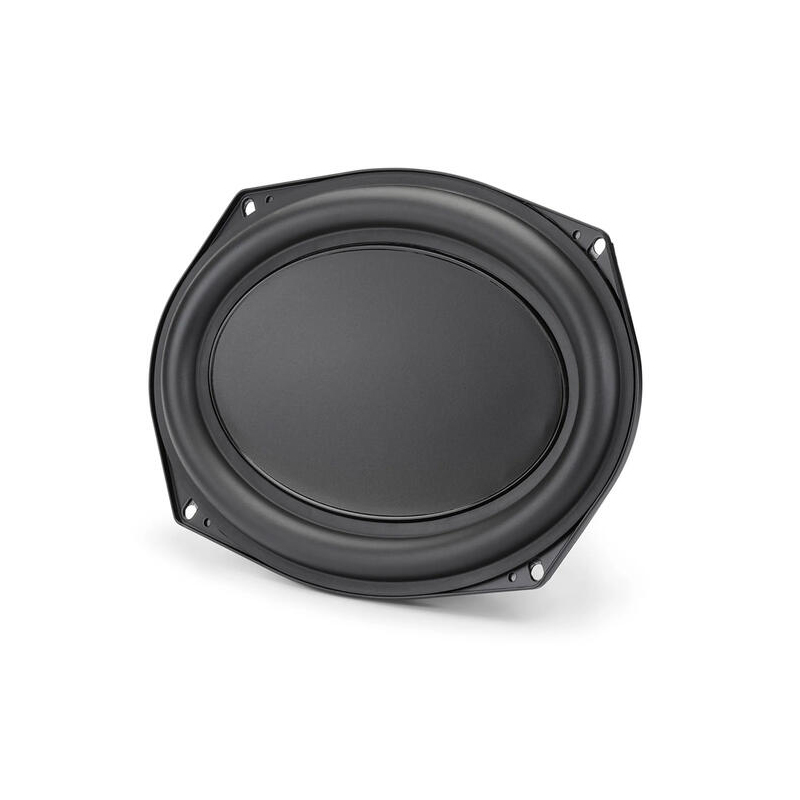

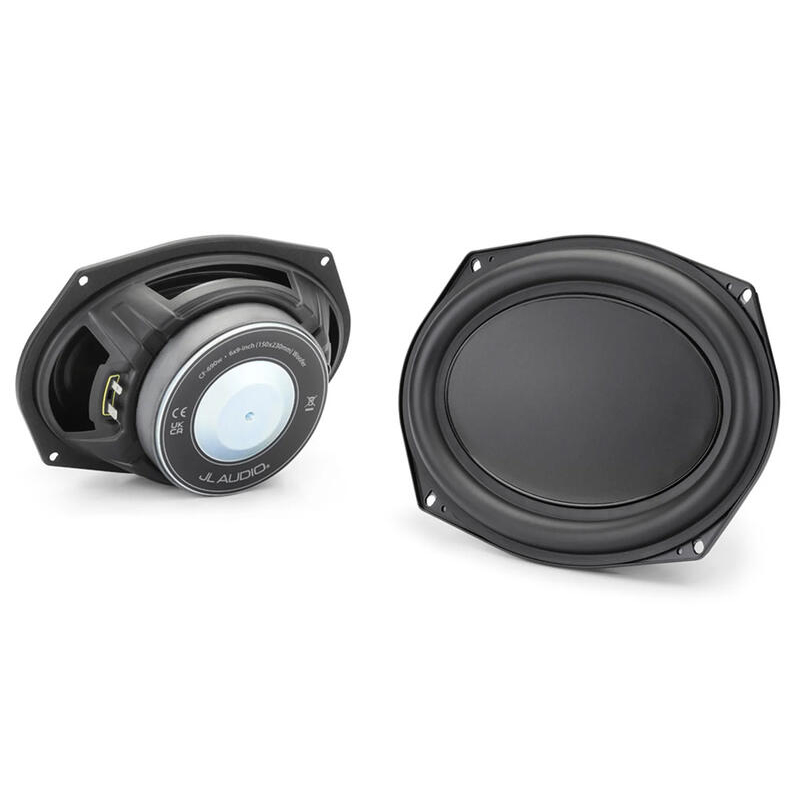

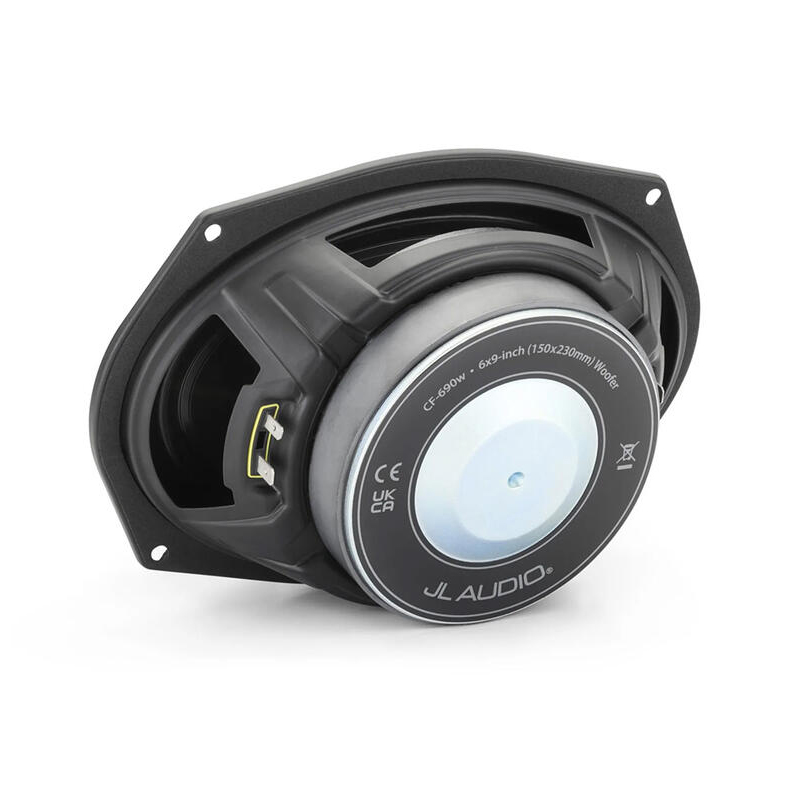

JL Audio CF-690w

These custom-fit (CF) speakers from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including many Ram, Toyota, Chevrolet and GMC models. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.

• Size: 6×9″
• Continuous Power Handling (RMS): 100 W
• Sensitivity (SPL @ 1 W / 1 m): 84.8 dB
• Frequency Response (±3 dB): 36 – 610 Hz
• Nominal Impedance: 4 Ω
• Recommended Amplifier Power (RMS): 50-150 W/Channel
• Cone material: Mineral-filled polypropylene
• Speaker Connections: Spade connectors

Mounting Dimensions:

• Frame Outer Diameter: 6.38 x 9.13″ (162 x 232 mm)
• Mounting Depth Clearance: 2.85″ (72 mm)
• Motor Outer Diameter: 4.72″ (120 mm)

In the Box:

• Two woofers
• Four OEM adapter rings
• Two woofer foam gaskets
• Sixteen 1″ mounting screws
• Two 0.187″ female crimpable connectors
• Two 0.110″ female crimpable connectors
