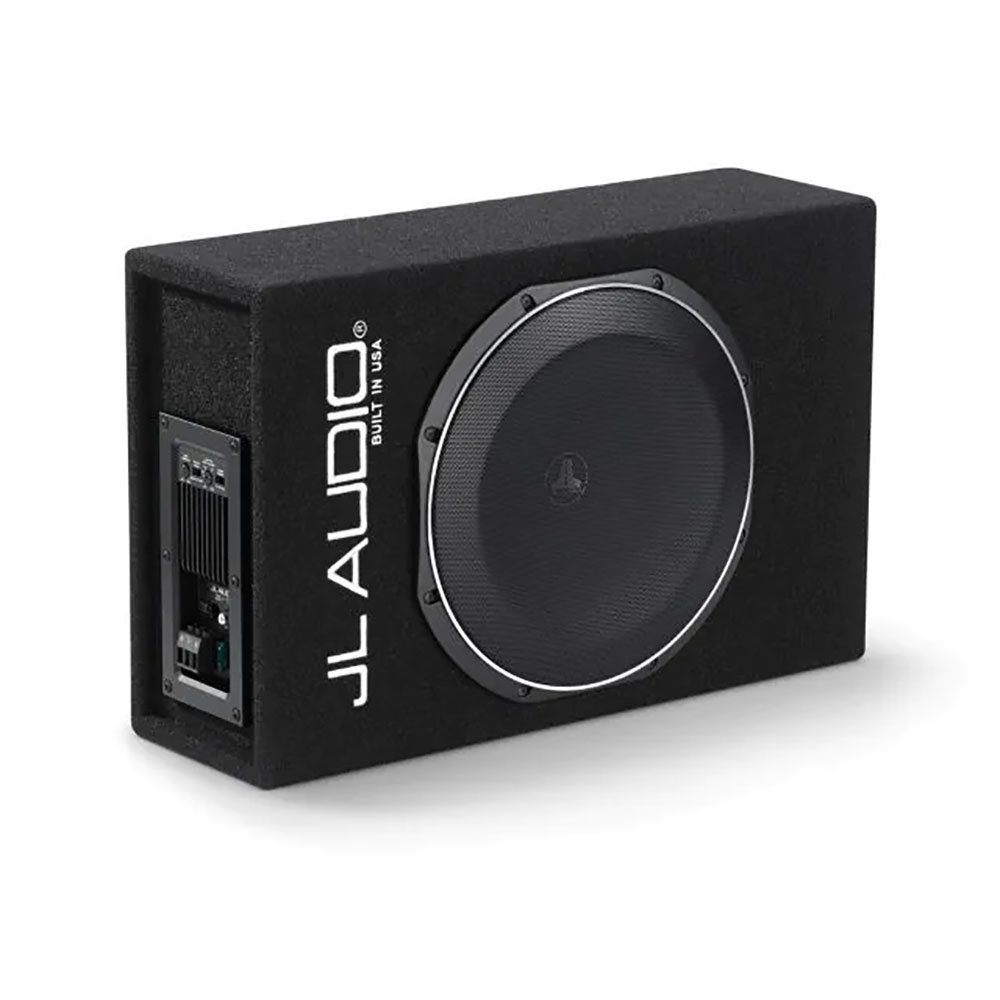

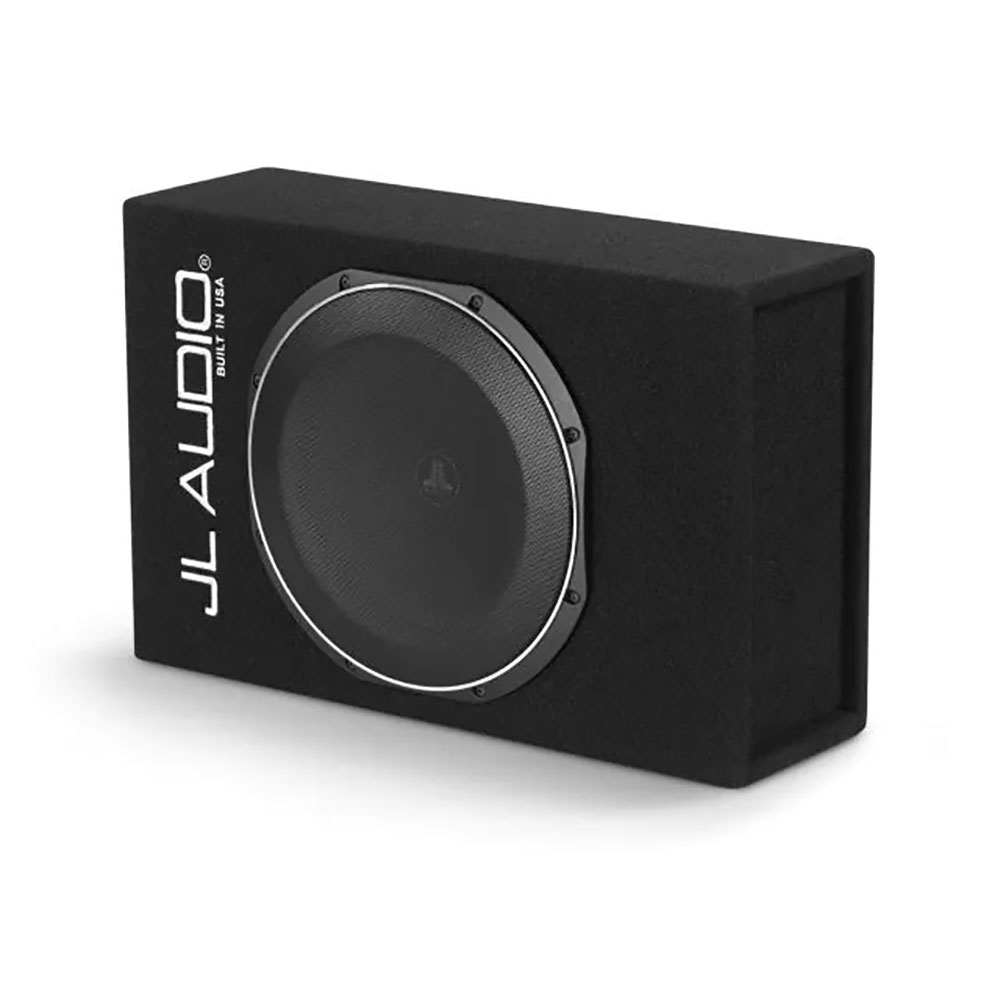

JL Audio ACS112LG-TW1 – 12″ TW1 Active PowerWedge Sealed Subwoofer

JL Audio ACS112LG-TW1

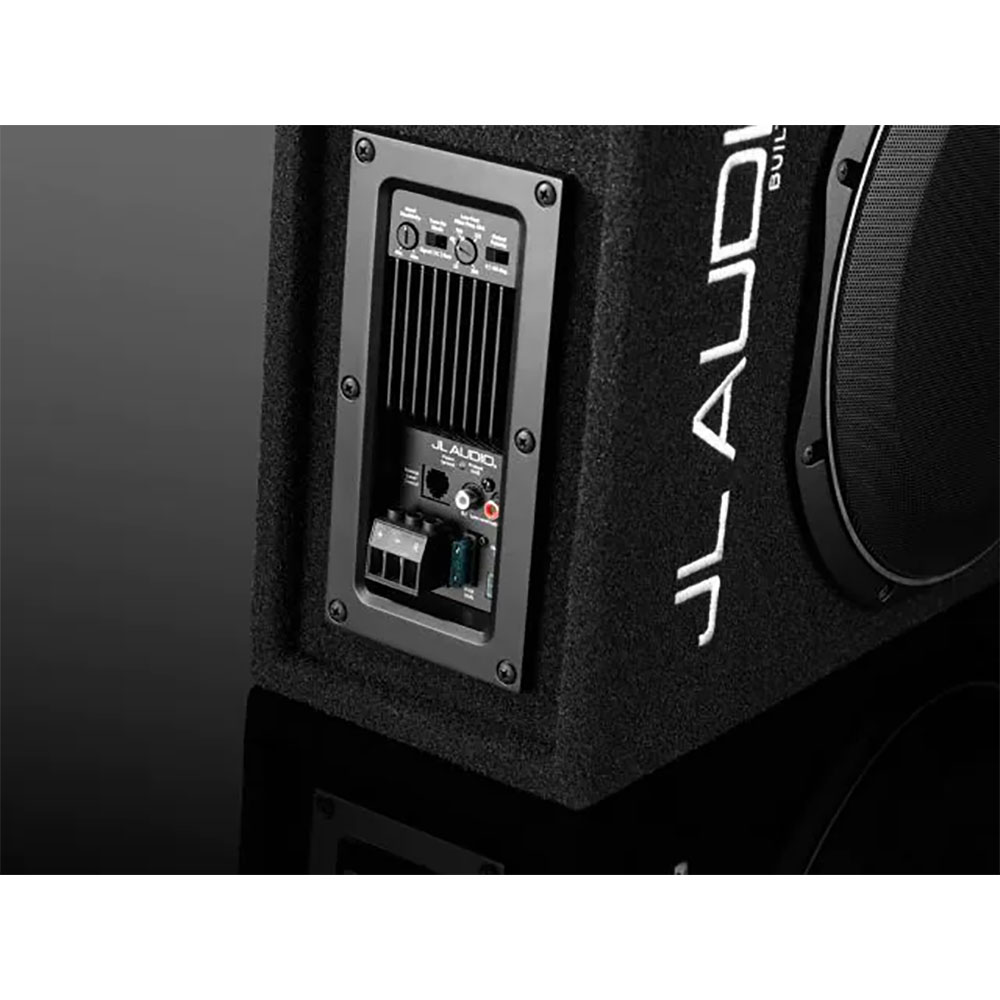

In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.

Specifications

• Continuous Power Handling (RMS) Built-in amplifier 400 W @ 0.25 Ω
• System Nominal Impedance 0.25 Ω
• Input Voltage Range @ RCA Inputs 70 mV – 1.40 V RMS
• Input Voltage Range @ High-Level Inputs 280 mV – 5.4 V RMS
• Recommended Copper Power / Ground Wire Gauge 8 AWG wire
• Fuse Rating 30 A (ATO or ATC)
• Enclosure Type Slot-ported, Low-profile
• Finish Black carpet
• Grille Included Black Steel Mesh
• Signal Processing
• Filter Modes Low-Pass only
• Filter Slope (dB/Octave) 12 dB
• Filter Frequency Range 50-200 Hz
• Output Polarity Switch Yes
• Remote Subwoofer Level Control Optional (RBC-1)
