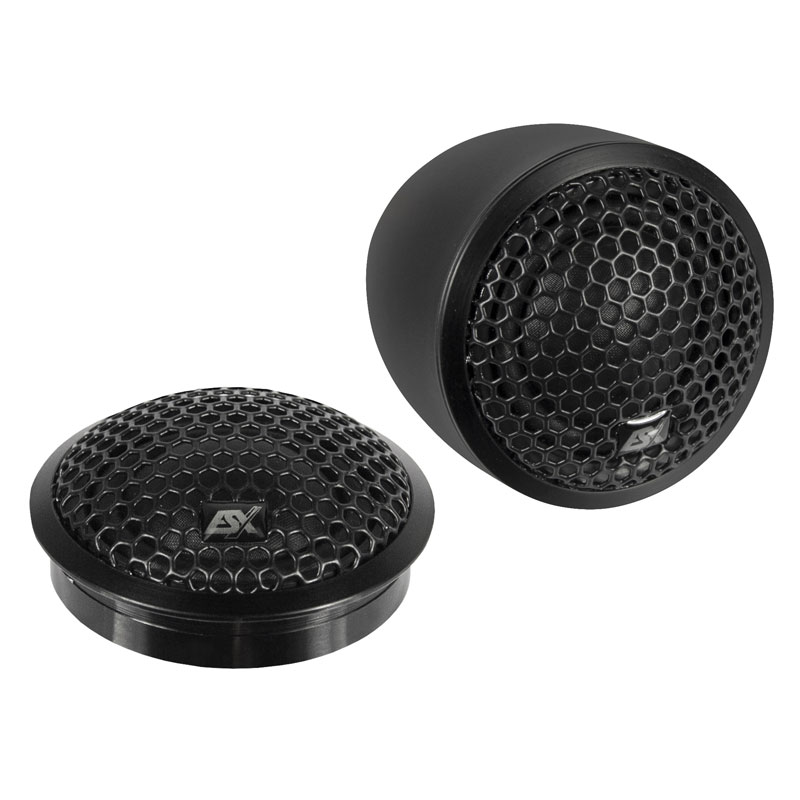

ESX QXE6.2TV2 Quantum Series 25 mm (1″) Silk Dome Neodymium Tweeters

ESX QXE6.2TV2

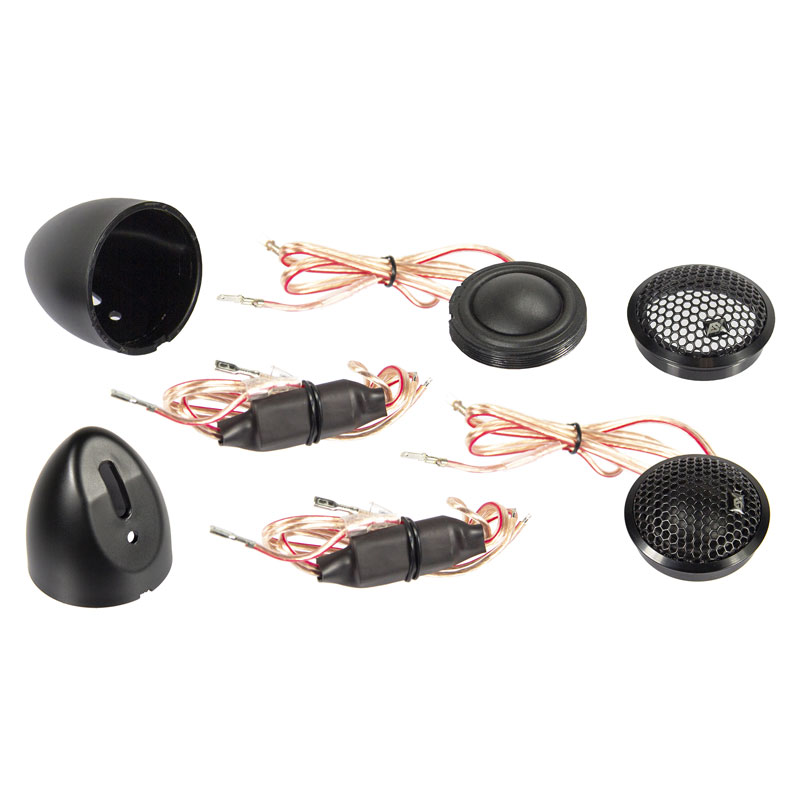

The QUANTUM QXE6.2TV2 silk dome neodymium tweeter as a V2 version is also a completely new development. A look at the measurement protocol reveals the potential of this extremely good 25 mm neodymium tweeter: This shows a frequency response that looks as if it had been drawn with a ruler! Incredibly linear up to well over 22,000 Hz, this tweeter plays with absolute confidence and playful ease. The grille can be unscrewed together with the housing using a metric thread and significantly reduces the space required (e.g. for the mirror triangle). A housing made of ABS is included in the scope of delivery for surface use. Including 6 dB cable crossover.

Specifications

• 25 mm (1″) Silk Dome Neodymium Tweeters
• Power Rating 125 Watt/RMS, 250 Watt/Max.
• Frequency Range 3500 – 24000 Hz
• Impedance 4 Ω
• Screwable Tweeter Brackets for flexible Installation
• Built-in and Surface Mount Housings
• 6 dB Cable Crossovers
• Installation depth 9 mm
• Installation diameter 44 mm
