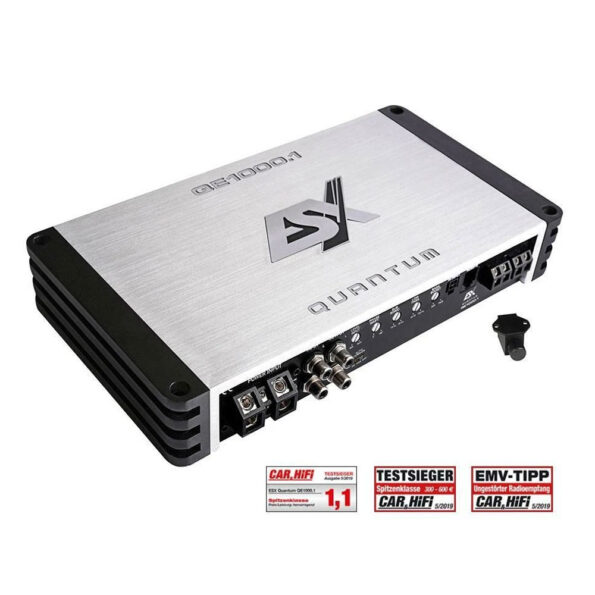

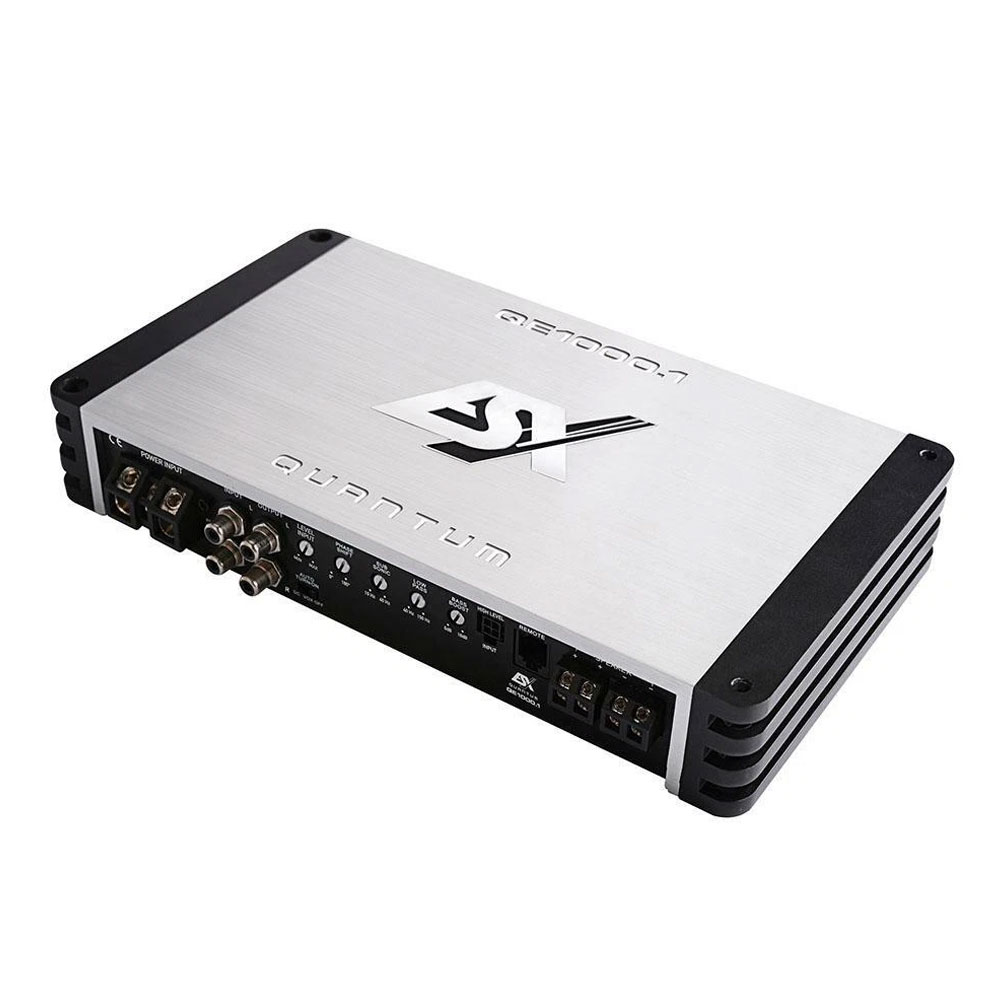

ESX Quantum QE1000.1 Mono Class D Digital Car Amplifier

ESX Quantum QE1000.1

The newly developed ESX QUANTUM QE series is a class of its own. Conventional high power digital amplifiers usually cause interferences in the vehicle and disturb the radio reception. Not so with the new QE models: During the development period, special attention was paid to achieve an emission-free music playback. Also the sound is perfect, because high-quality components guarantee an audiophile sound experience at its best. The features are also impressive: Auto Turn-On Function, EPS®, variable crossover filters – everything your heart desires is on board. High-quality connectors and screwed RCA sockets complete the perfect appearance. All amplifiers are delivered with a sophisticated level remote control, which can be installed very space-saving with or without housing.

Features

• Advanced Class D Technology with very high Efficiency
• Selected and audiophile tuned Components
• Massive Aluminum Heatsink
• Heavy lateral Die-cast Parts
• High Level Inputs with Error Protection System (EPS®)
• Auto Turn-On Function
• Start/Stop Ready
• MOSFET PWM Power Supply
• 3-Way Protection Circuit
• Compact Bass Remote Controller

Specifications

• 1 x 350/600/1000 Watts RMS @ 4/2/1 Ω
• Subsonic 10-40 Hz, LPF 40-150 Hz
• Subsonic 10-40 Hz
• LPF 40-150 Hz
• Bass Boost 0-18 dB
• Phase Shift 0-180°
• Dimensions 280 x 46 x 165 mm
• Efficiency up to 92%
