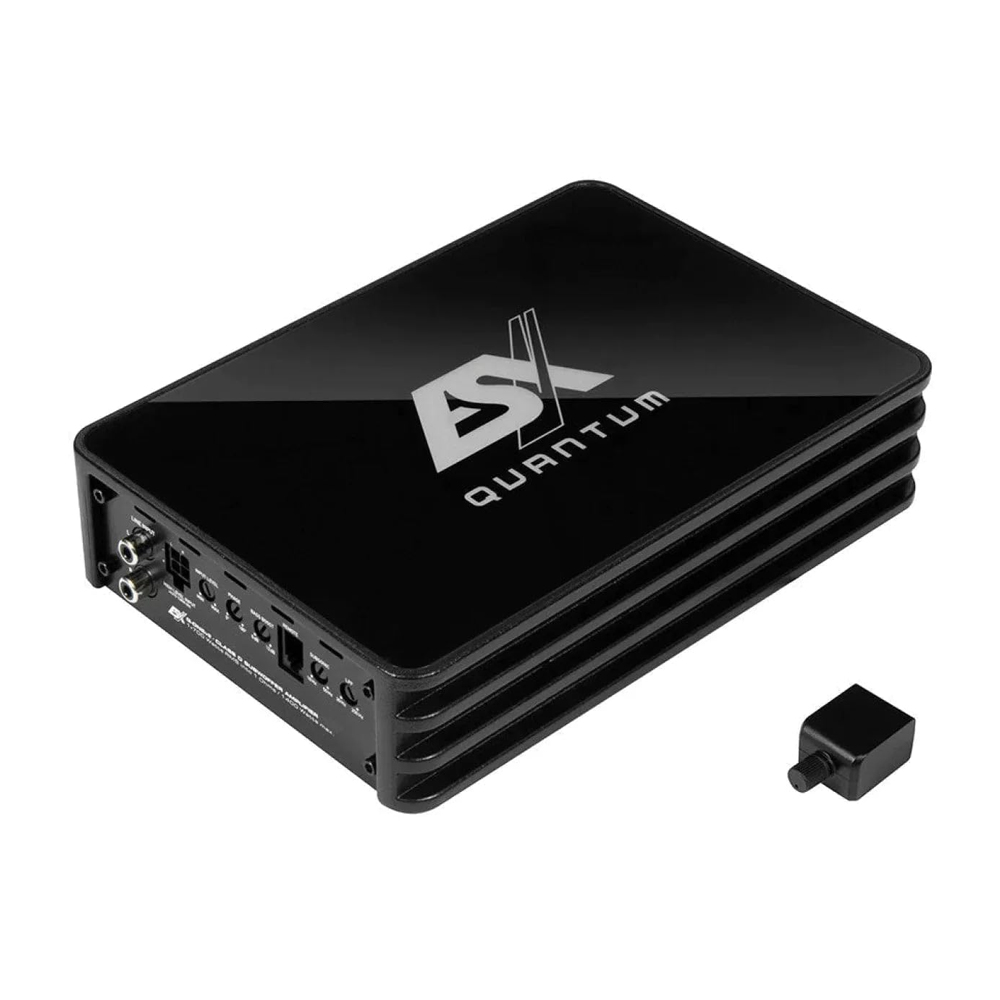

ESX Q-ONEV2 Quantum 12V Mono Class D Digital Car Amplifier 1400W

ESX Quantum Q-ONEV2

QUANTUM compact class amplifiers are now upgraded to V2 version and offer superior performance and enhanced functionality. With a footprint of only 150 x 220 mm, both power plants are designed entirely as Class D digital amplifiers. Cast iron heat sinks use state-of-the-art digital technology that sets performance standards up to 90%. Thanks to the automatic start function coupled with the high-level inputs, both models are not only suitable for almost any installation due to their size. Q-One and Q-Four are now available in 12V and 24V versions and can therefore be used in trucks and coaches with a 24V on-board network.

Specifications

• Compact Mono Class D Digital Amplifier
• 1400W max. Output power:
• 1 x 300/500/700W RMS @ 4/2/1?
• Subsonic 10-50Hz, LP 30-250Hz.
• Bass Boost 0-12dB, phase shift 0-180°.
• High-level inputs with auto-ignition function and EPS
• Compact wired bass remote control
• Dimensions: 150 x 50 x 220 mm
• Yield up to 84%.

High-efficiency Class D technology – Heavy cast iron heat sink – Stylish acrylic coating – High level inputs with Auto Turn-On and EPS
