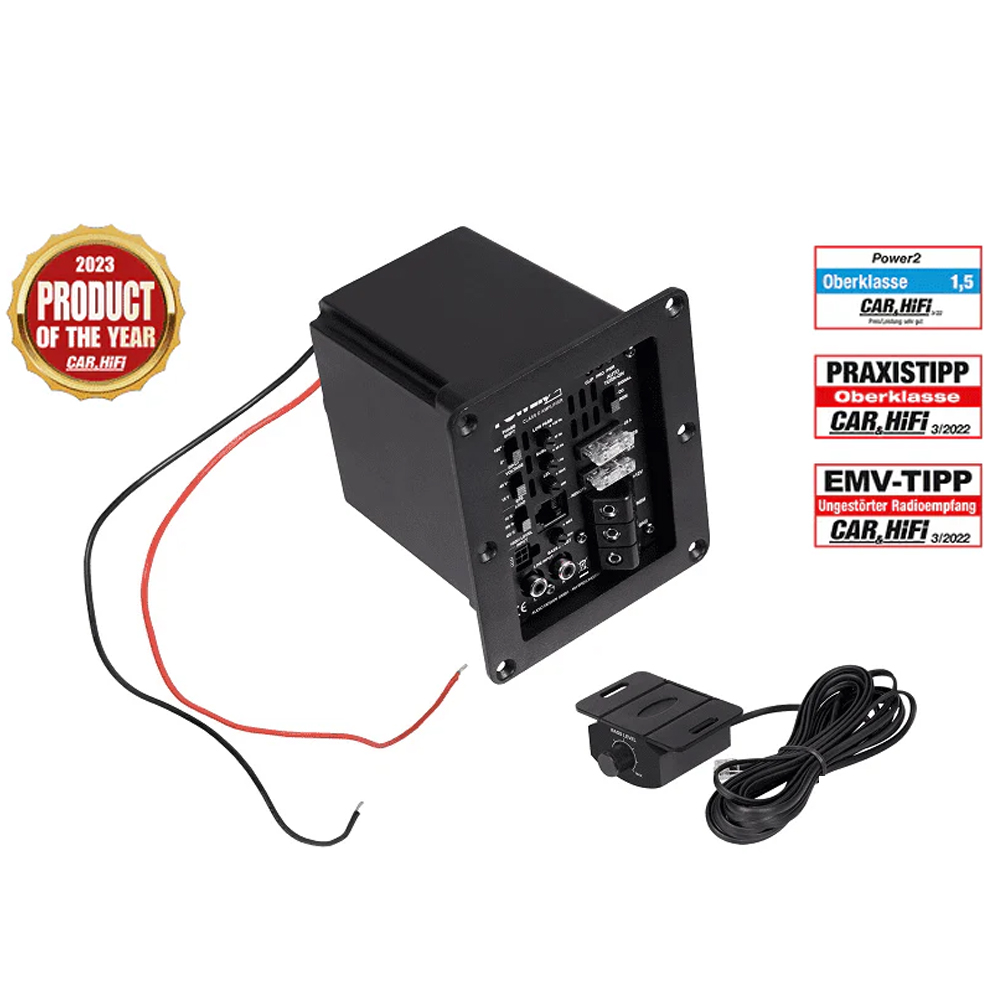

ESX POWER2 Active Module For Class D Amp, Subwoofer Enclosures 475 Watt, 2 Ohm

ESX POWER2 475 Watt @ 2 Ohm

While very large amplifiers and subwoofers used to be installed visibly and very prominently in the trunk, hidden components are all the more popular in modern vehicles today. However, these have to be much more compact and efficient. A good and proven solution for more bass in the car are active enclosure subs, in which the integrated subwoofer is powered by an active module already installed in the enclosure at the factory. The powerful and highly efficient digital POWER4 and POWER2 retrofit modules with real RMS watt ratings and ingenious connection features for many high-end applications now provide a remedy.

Depending on the subwoofer installed, you can choose between a 4 or 2 Ω variant, otherwise the modules are identical in construction. With a fat 460 W/RMS for the 4 Ω and 475 W/RMS for the 2 Ω model, even very power-hungry subs can be driven – and with an impressively high efficiency of up to 84%. Such modules only achieve this through advanced Class D technology; conventional Class A/B amplifiers are completely inadvisable, as they consume much more power at high output and would therefore quickly overheat and require much larger cable cross-sections. Ingenious – smaller subwoofers can also be optimally supplied and protected from excessive power via a hidden 3-way limiter switch. Both modules fit into all passive enclosures from ESX, Musway and HiFonics with Quick Connect terminals in exchange. Installation and connection is extremely simple!

Connecting to modern car audio systems is often a major challenge. Thanks to advanced EPS PRO technology, it is possible to simulate three different input resistances, allowing the high-level inputs to be perfectly matched to the radio in the vehicle without triggering a fault diagnosis in the vehicle. In addition, the input sensitivity can be easily switched from 15 to 40 volts.

Specifications

• Class D active module for subwoofer enclosures (2 Ω version)
• Efficient Class D mono amplifier
• 1 x 245/475 watts RMS @ 4/2 Ω
• Efficiency up to 84%
• Low-pass 40-120 Hz with 12 dB slope
• Phase switch 0°/180°
• Bass boost 0-6 dB @ 45 Hz
• Cinch low level input
• High level input
• Automatic switch-on function (DC or signal) Start-stop function signal)
• Start-stop capable, 5 sec. / up to 7 volts
• EPS PRO with 10R / 150R / 600R (switchable)
• Input sensitivity 15 or 40 volts (switchable)
• 3-fold limiter function, clipping LED
• Bass level cable remote control
• Suitable for enclosures with Quick Connect terminals
• Dimensions 113 x 130 x 125 mm
• Mounting opening: 85 x 109 mm
