ESX DBX112Q DBX Series 12″ Single Bassreflex Subwoofer System

ESX DBX112Q

The ESX DBX bass reflex systems with trapezoidal enclosure are all equipped with protective grilles, which optimally protect the high-quality woofers with hollow paper cone. These are equipped with a resilient 38 or 50 mm voice coil and deliver powerful bass.

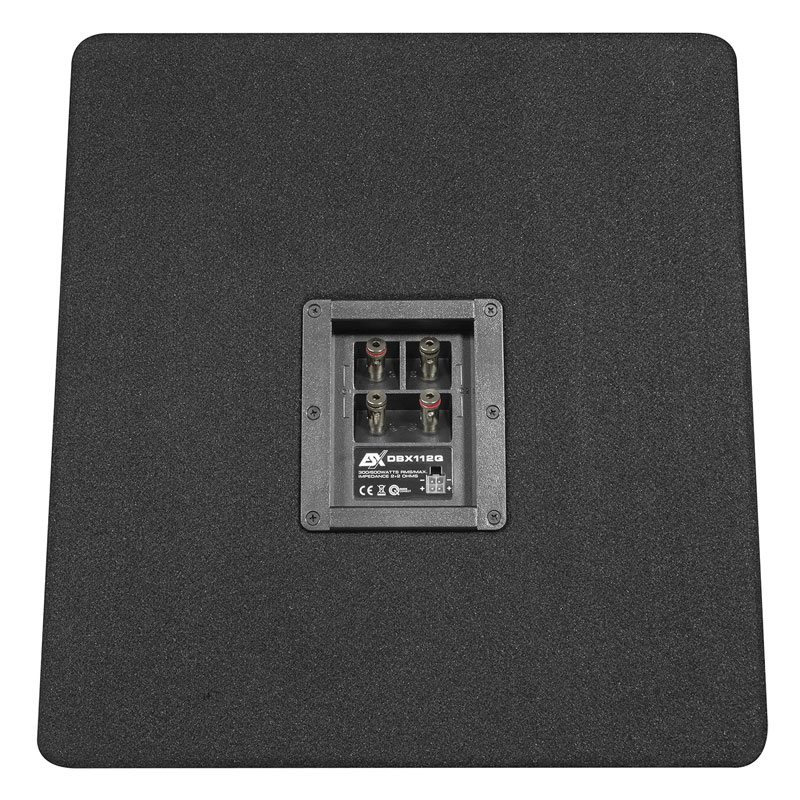

In addition to the conventional connection sockets, where the 2+2 Ω output can also be wired to a single 4 or even 1 Ω output, the case also features the innovative Quick Connect connection, which allows plug+play connection with any amplifier via a 4-way Molex socket. This requires special Quick Connect connection cables , available in 4 different lengths.

Specifications

• Single 30cm (12”) bass reflex system
• Power handling 300/600 watts RMS/Max.
• impedance 2+2 Ω
• 50mm (2″) voice coil
• subwoofer with handmade paper membrane
• Stable perforated grille to protect the subwoofer
• High quality logo embroidery
• Heavy-duty carpet covering
• Quick Connect connection socket
• Dimensions 38 x 40 x 48/28 cm
